- Available Certified ISO Grade Designs: ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
- Door consists of a single piece of polished tempered glass and provides full visibility of the chamber from the outside
- Fully welded cleanroom passthrough without crevices, ideal for medical/pharmaceutical applications
- Doors can be removed and autoclaved for comprehensive sterilization
- Automatic door interlock allows only one door to open at a time to prevent cross-contamination
- Hygienic design features NSF certification to support contamination control and compliance with sterile processing requirements
- Talk to an Expert +1 (714) 578-6100
BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,BioSafe® CleanMount® Pass-Through Chambers,Passthroughs for Architects
2627-PP-01
2627-PP-01
BioSafe® CleanMount® Pass-Through Chambers with Frameless Glass Doors
Read more
Latest Model - New Features
- Frameless glass doors
- Removable gaskets
- 304 or 316 stainless steel construction
Want a quote quickly ?
Submit a QuickQuote requestLearn More: Terra's Quick Ship Information
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra Quick Ship Plus Service
Terra's QuickShip Program includes thousands of in-stock, ready-to-ship, ready-for-delivery products.
Examples of Quick Ship Plus-eligible products include:
Terra's Quick Ship Plus service provides the necessary resources to guarantee the required delivery date.
The Quick Ship Plus service is available for orders of in-stock, turnkey products that do not require any additional assembly before shipment. This service guarantees that the order will be delivered on or before the date indicated, or the charges for the Quick Ship Plus service will be refunded in full upon the client's approved request.
This guarantee does not cover any direct, special, consequential, or other damages, and is strictly limited to 100% of the amount paid for the Quick Ship Plus service. In alignment with FasTrak programs, In the case that shipment delays arise due to factors that are within Terra's control, Terra will refund up to 100% of the Quick Ship Plus fees. This guarantee does NOT cover direct, special, consequential or other damages and is strictly limited to 100% of the amount paid for Quick Ship Plus service.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
BioSafe® CleanMount® Pass-Through Chambers
.jpg "BioSafe® CleanMount® Pass-Through Chambers")
Standard Features

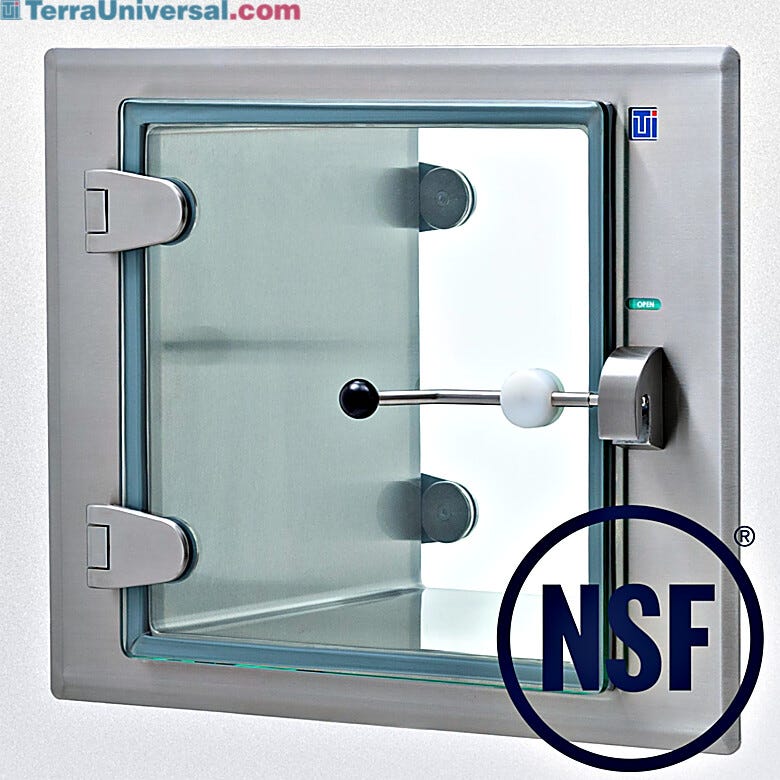

- A Glass DoorSingle piece polished tempered glass provides full visibility.
- B Latch ArmPivoted stainless steel latch arm with ergonomic large round knob rotates in and out of locked position.
- C Hinge AssemblyHinges and latch arm are easily detachable to allow door to be easily cleaned, maintained, or replaced.
- D CleanMount® DesignCleanMount® design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement.
- E InterlockAutomatic door interlock allows only one door to open at a time to prevent cross-contamination.
- F BioSafe® Steel Design316L stainless steel chamber eliminates surface contaminants.
- G One-Piece GasketSingle piece adhesiveless gasket can be removed for regular maintenance.
BioSafe® CleanMount® Pass-Through Chambers
ISO 5 BioSafe® CleanMount Pass-Through with Frameless Glass Door- Sloped-Top BioSafe® CleanMount Pass-Through with Full-Glass Door
- Watch Terra's CleanMount® Pass-Throughs and Racks Video
- Smart® Pass-Through Chambers by Terra Universal
- BioSafe® Pass-Throughs
- Cleanroom Pass-Through Features and Selection Guide
SKU: 2627-PP-01
ISO 5 BioSafe® CleanMount Pass-Through with Frameless Glass Door
This frameless glass door BioSafe® pass-through has a stainless steel double-walled, seamless chamber for an ISO 5 cleanliness rating, down to ISO 4 with optional service package. Doors and gaskets are fully autoclavable.
BioSafe® CleanMount Pass-Through installs cleanly in minutes; isolated interlock within double-wall chamber minimizes contaminable surfaces | 2627-PP-01 displayed ISO 5 BioSafe® CleanMount Pass-Through with Frameless Glass Door This frameless glass door BioSafe® pass-through has a stainless steel double-walled, seamless chamber for an ISO 5 cleanliness rating, down to ISO 4 with optional service package. Doors and gaskets are fully autoclavable.
35882
Sloped-Top BioSafe® CleanMount Pass-Through with Full-Glass Door
BioSafe® CleanMount design prevents cleanroom shutdown for servicing or replacement while resisting harsh chemicals and alcohol-based cleaning products.
35883
BioSafe® CleanMount Pass-Through, Sloped-Top with Tempered Glass Door
Stainless steel BioSafe® CleanMount pass-through features a single-unit tempered-glass door to provide an unobstructured view of the chamber interior.
BioSafe® Sloped Top Pass-Through Chamber
Sloped top design to limit particile buildup and pass-through chamber with automatic door interlock to prevent cross-contamination.
BioSafe® CleanMount Sloped Top Pass-Through
Corrosion-resistant BioSafe® CleanMount model reduces foot traffic and improves cleanliness for medical/pharmeceutical applications.
Stainless Steel BioSafe® Pass-Through Chamber
BioSafe® stainless steel pass-through chamber designed for corrosion resistance and easy cleaning with seamless welds to eliminate hard-to-clean cracks and sources of potential contaminants.
Animation detailing installation and operation for Terra's CleanMount® pass-throughs and racks Watch Terra's CleanMount® Pass-Throughs and Racks Video Animation detailing installation and operation for Terra's CleanMount® pass-throughs and racks
Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.
BioSafe® Pass-Throughs Showing the optimal cleanroom pass-through chamber for aseptic operations, this video provides an overview of the features and benefits of BioSafe pass-throughs.
Video introduction to pass-through chamber designs, construction and accessories | 1948-20D displayed Cleanroom Pass-Through Features and Selection Guide Video introduction of pass-through chamber designs, construction and accessories. Discover how these chambers increase efficiency and reduce contamination during between-room transfer of samples and supplies.
Features & Benefits
Features and Benefits
Learn More: CleanMount Basics
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall) Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Print Copy Copied
CleanMount BioSafe Smart Pass-Through Chamber
Don't risk operational delays or cleanroom shutdown because of a damaged door!
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add “-RH” (for right-side hinge) or “-LH” (for left-side hinge) to the part number of the chamber.CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications. A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Mounting Illustration with Door Swing Direction

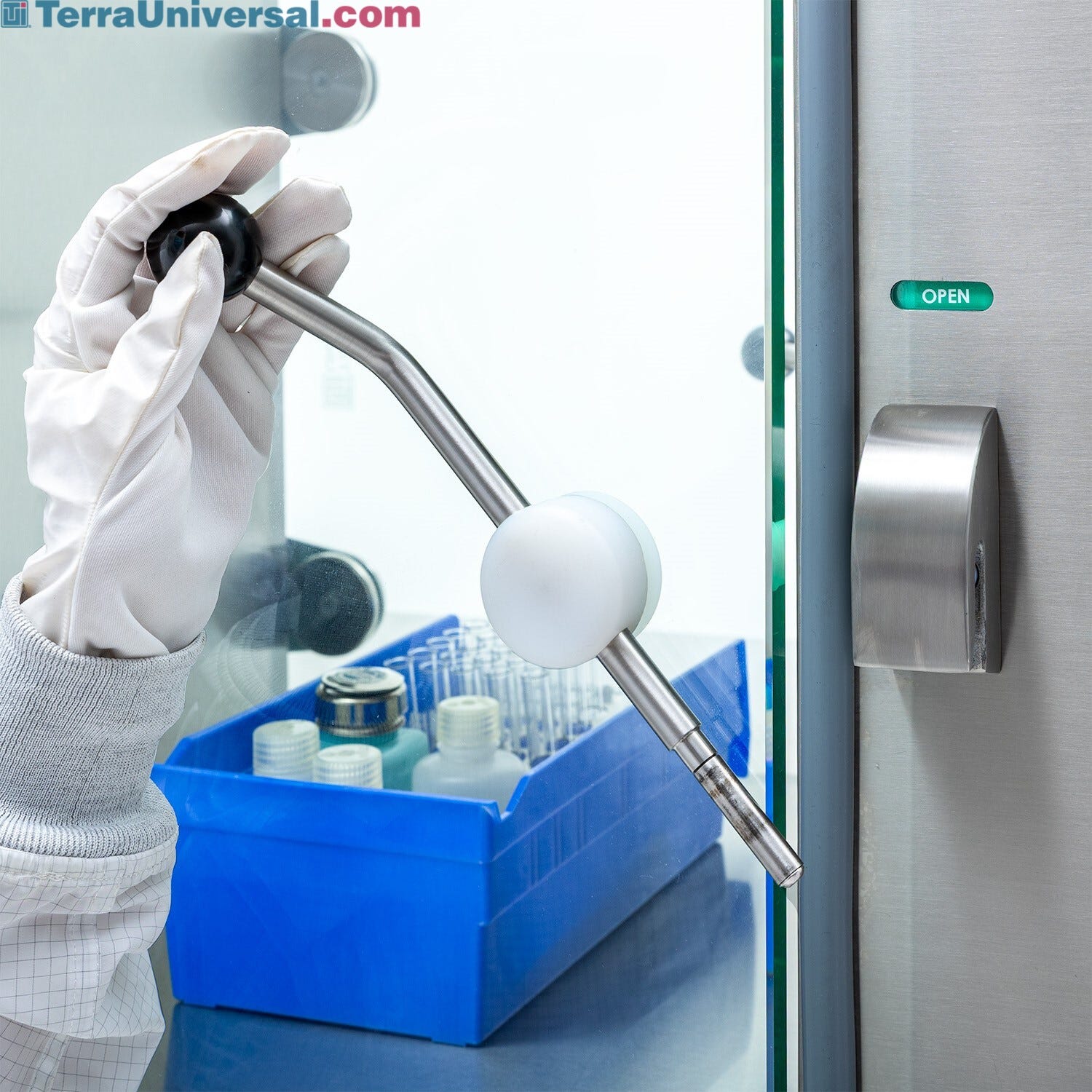

BioSafe® CleanMount Pass-Through Locking Mechanism
The BioSafe® pass-through's door catch mechanism connects to an automatic internal interlock that prevents both doors from opening simultaneously.
316 Grade Stainless Steel Pass-Through Hardware
The hinges, catcher, and latch bar are all composed of 316 stainless steel for maximum cleanliness. The hinges and handle are also removable to enable for easy door cleaning.
Durable Double Wall Construction
BioSafe double-wall construction triples unit lifespan and totally eliminates cleaning of accessories

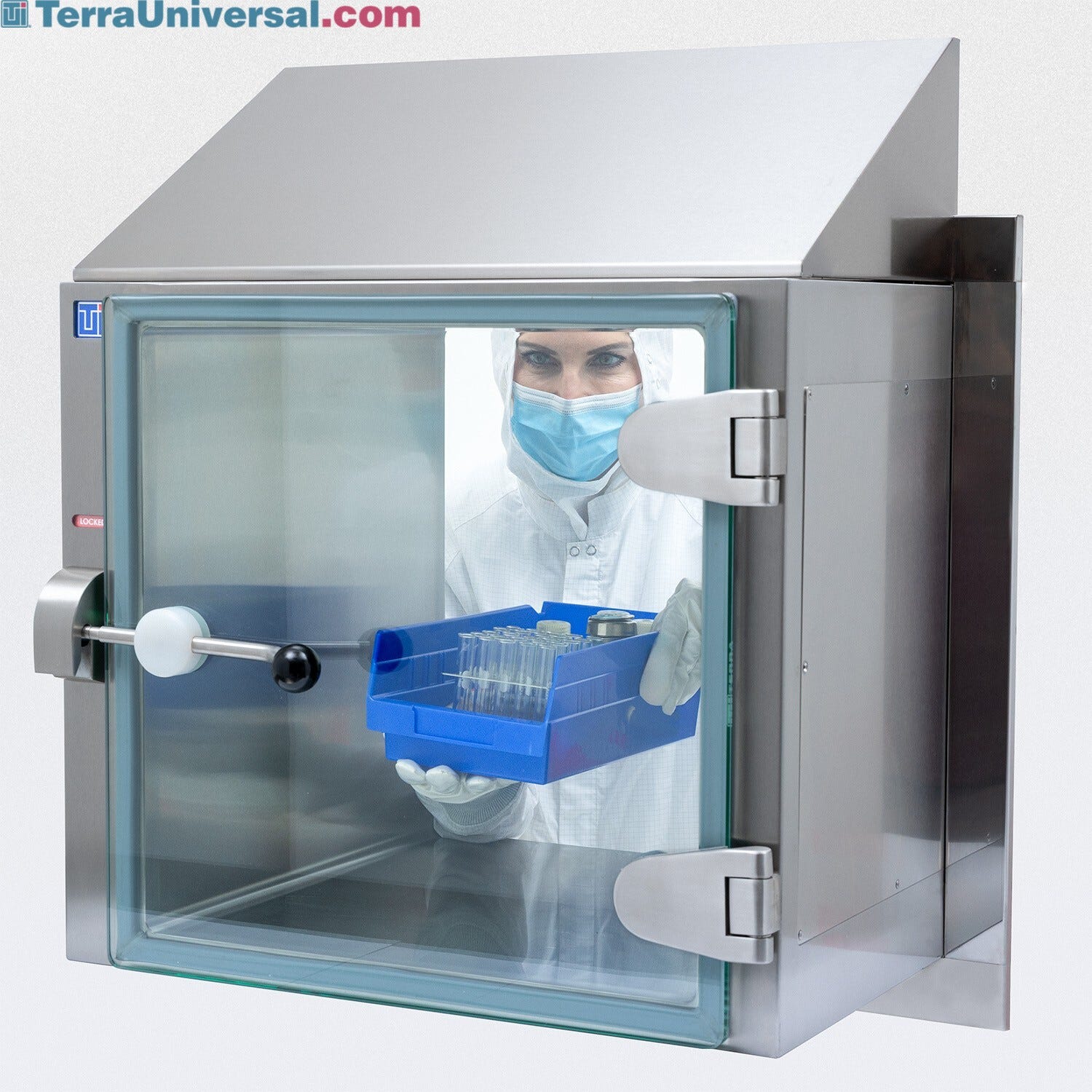

Sloped Top BioSafe® CleanMount® Pass-Through
Sloped top design minimizes particle buildup and simplifies cleaning for a more sanitary workspace.
Door Status Indicator
Visible door status indicator shows interlock status at a glance, which allows only one door to open at a time to prevent cross-contamination.
Easy Installation Simplifies Cleanroom Commissioning
Installing conventional passthroughs can be very messy, making it impossible to perform while a cleanroom is operational. Terra’s innovative CleanMount® fastening system changes that, allowing for clean installation without drilling or penetrating the cleanroom wall. Framing a CleanMount® passthrough chamber on a finished cut-out eliminates the need for cleanroom shut-down during installation or service.
Comprehensive Product Portfolio
Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Pass Through Racks
Designed to be installed into any pass through. Install these racks within minutes with no special tools. Simply tighten a compression screw. Forgot to order racks before? No problem!-
Passthrough Ventilation Exhaust Ducts
Adding a duct flange to the top of the passthrough allows the chamber to be ventilated by a remote blower. The ULPA-filtered inlet, housed in a perforated stainless steel cage, provides the necessary make-up air without contaminating the chamber. -
Grounding Terminals
Grounding terminals are ideal for the most static-sensitive applications (must be ordered with chamber; cannot be retrofitted). -
Mounting System for Tempered Glass Wall Panels
This unique mounting system allows installation of pass-through chambers on Terra Universal's modular cleanrooms with tempered glass wall panels. -
ULPA-Filtered Air Shower
High-velocity, ULPA-filtered air dislodges surface-deposited contaminants and exits the chamber through a filtered exhaust. -
ULPA Exhaust Port
ULPA exit filter module captures and removes residual particles between cycles to preserve cleanroom integrity at every transfer. -
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
