• Frame Material: Powder-Coated Steel
• Overall Dimensions: Custom
• Panel Material: Polycarbonate
• Unit of Measure: EA
Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms
Cleanroom; Hardwall, Modular, Polycarbonate Panels, Powder-Coated Steel Frame
Custom-configured product: Please request quote. Terra will contact you for requirements.
Read more
Terra Part #: 6600-64A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Want a quote quickly ?
Submit a QuickQuote requestStatic-Dissipative PVC vs. Acrylic
Compared to acrylic, static-dissipative PVC offers three benefits that reduce operating expenses and drive down overall ownership cost of a clean room, glove box, hood, desiccator, or other enclosure.
The resulting static cling makes it difficult to remove contaminants from the charged surfaces without the use of ionizing equipment or frequent cleaning with special anti-static solutions. Variations in the surface charges can lead to unpredictable release of aggregated particles, threatening contamination-sensitive material.
For this reason, expect acrylic to drive up the cost of keeping an acrylic enclosure contamination-free.
An aseptic environment requires frequent sterilization with disinfectants such as alcohol. Unfortunately, most common biocides, including industry-standard IPA solutions, degrade acrylic, causing cracks and discoloration.
Static-dissipative PVC, on the other hand, resists alcohol and most other sterilizing solutions, supporting standard disinfecting procedures and extending the life of your enclosure.
Acrylic’s most serious hidden cost becomes apparent when static-sensitive materials are destroyed or degraded by unpredictable electro-static discharge (ESD).
Whether it results from hand-wiping the acrylic surface or from the micro-frictional effects of a strong airflow, surface static charge poses serious threat to semiconductor, electronics, and other sensitive materials. In fact, acrylic supports the accumulation and discharge of up to 20,000 volts. This danger is especially acute in a low-humidity environment like a nitrogen-purged glove box or desiccator.
In critical applications, however, acrylic should be avoided. Lower total ownership costs – due to easier cleaning, sterilization, and ESD control – quickly justify the initial expense of a static-dissipative PVC enclosure.
Print Copy Copied
Hidden Costs of Acrylic Enclosures
Compared to acrylic, static-dissipative PVC offers three benefits that reduce operating expenses and drive down overall ownership cost of a clean room, glove box, hood, desiccator, or other enclosure. Contamination Control
Acrylic is a prolific static generator. The back-and-forth motion of wiping an acrylic surface creates positive and negative surface charges that attract and hold small particles.The resulting static cling makes it difficult to remove contaminants from the charged surfaces without the use of ionizing equipment or frequent cleaning with special anti-static solutions. Variations in the surface charges can lead to unpredictable release of aggregated particles, threatening contamination-sensitive material.
For this reason, expect acrylic to drive up the cost of keeping an acrylic enclosure contamination-free.
Don't Turn Your Clean Enclosure into a Particle Magnet! Non-dissipative plastics quickly accumulate surface charges that attract contaminants. If the panel on the left clings to this many test spheres, just imagine how many micro-particles it attracts!
Germ Control
An aseptic environment requires frequent sterilization with disinfectants such as alcohol. Unfortunately, most common biocides, including industry-standard IPA solutions, degrade acrylic, causing cracks and discoloration.Static-dissipative PVC, on the other hand, resists alcohol and most other sterilizing solutions, supporting standard disinfecting procedures and extending the life of your enclosure.
ESD Control
Acrylic’s most serious hidden cost becomes apparent when static-sensitive materials are destroyed or degraded by unpredictable electro-static discharge (ESD). Whether it results from hand-wiping the acrylic surface or from the micro-frictional effects of a strong airflow, surface static charge poses serious threat to semiconductor, electronics, and other sensitive materials. In fact, acrylic supports the accumulation and discharge of up to 20,000 volts. This danger is especially acute in a low-humidity environment like a nitrogen-purged glove box or desiccator.
Why Consider Acrylic?
Despite these disadvantages, acrylic is widely used in clean rooms and other critical environment applications. Its low initial cost, light weight, transparency, and strength make it an attractive choice in many situations, and Terra offers most of its enclosures in acrylic in order to provide a competitive option.In critical applications, however, acrylic should be avoided. Lower total ownership costs – due to easier cleaning, sterilization, and ESD control – quickly justify the initial expense of a static-dissipative PVC enclosure.
Terra Part # 6600-64A
Request Quote
Usually ships in 20-26 business days
Want it faster ? Read about FasTrak
Accessories related to Terra Part # 6600-64A
68957
Cleanroom; Hardwall, Modular, Polycarbonate Panels, Powder-Coated Steel Frame
• Refer to sales order and/or drawings for dimensions and other details
• Lexan(R) panels are center mounted to 2" powder-coated square steel uprights
• Mirror-finish stainless steel L-bracket trim strips provide an attractive, easy-clean exterior
• Includes powder-coated steel ceiling grid that forms 2' x 4' bays for filter/fans, lights or blank panels (order ceiling modules separately)
• Mirror-finish SS control panel includes all specified blower, light and other utility switches
• Request UL Listing Declaration (order separately) for cleanroom electrical system, which helps meet municipal and other permitting requirements that may apply
• Polycarbonate panels resist many common acids, solvents and cleaning solutions
• Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes.
• Check your local planning department to see what regulations apply to your installation.
• Specified height is from the floor to filter face. FFUs add 13" overhead clearance to this measurement. To assure proper air flow and installation, allow an additional 11" between the top of the FFUs and the ceiling or other overhead obstruction (total of 24" between the cleanroom filter face and the surrounding facility ceiling).
• Other options include access doors, air conditioning, air locks and antechambers, air flow and pressure gauges, and furnishings
• Seismic analysis available; specify Part Number 6600-98. Changes required after approval, if any, are to be covered by change orders.
• Frame Material: Powder-Coated Steel
• Overall Dimensions: Custom
• Panel Material: Polycarbonate
• Unit of Measure: EA
• Marks & Listings: UL, ULC
• Weight, Shipping: 2,203 lb
• Dimensions, Shipping: 153" W x 65" D x 40" H
Manuals & Resources
Products similar to this one
-
Some ship in 20 - 26 days -
Some ship in 25 - 31 days -
Some ship in 25 - 31 days
Other products you may find relevant
-
Usually Ships in 20 - 30 days -
Some ship in 1 - 3 days -
Usually Ships in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 5 - 10 days -
Some ship in 5 - 10 days -
Some ship in 0 - 2 days -
Filter Replacement Alarm System; for Fan Filter Unit, Audible Alert, Manual Override, Stainless Steel, 120 V$1,068Usually Ships in 1 - 3 days -
Some ship in 1 - 3 days -
Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H$3,744Usually Ships in 3 - 5 days -
Some ship in 1 - 3 days -
Some ship in 20 - 25 days -
Some ship in 1 - 3 days -
Some ship in 10 - 16 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 50 - 70 days -
Some ship in 20 - 24 days -
Dual-Level Gowning Bench; 304 Stainless Steel, 36"W x 16"D x 18"H, Free Standing, Square Tube$1,003Usually Ships in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 8 - 12 days -
Some ship in 8 - 12 days -
Some ship in 8 - 12 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days
Buy Accessories
Hardwall Cleanrooms
On-Site Hardwall Cleanroom Installation- Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding
- Class 1,000 Modular Cleanroom for Quartz Rod Processing
Design, manufacture and assembly of 5000 square-foot modular cleanroom On-Site Hardwall Cleanroom Installation Video showing installation of a 5000-square-foot hardwall modular cleanroom at a customer site. The room is factory designed, manufactured and tested, then shipped overseas to install.
Extra-tall hardwall cleanroom for injection and extrusion blow molding; 36’L x 32’W x 14’H; Class 100,000, air conditioned | 6600-63A displayed Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding Terra’s rigid free-standing modular cleanroom allows for tall, spacious interiors to fit large equipment for injection and extrusion blow molding. Vertical air returns mounted on the back wall recirculate air to improve efficiency of air conditioning.
Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment Class 1,000 Modular Cleanroom for Quartz Rod Processing Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment. The custom feed-through allows quartz rods to be fed into the cleanroom. FFU’s in the ceiling are aligned with the feed-through opening to further protect the rods from particle contamination.
Features and Benefits
Affordable Customization
Print Copy Copied
Affordable customization to unique requirements!
- Terra's modular designs allow versatile configurations using standard components, whether you need a small equipment enclosure or a multi-suite processing facility
- Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
- Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
- Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
- Stand-alone A/C modules or integration with existing air handling system
- Consultation services available to meet industry-specific regulations, such as USP 797/800 compounding requirements
- Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges
Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!
In Stock Modular Cleanroom Components
Since each modular cleanroom component is pre-tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.
Long Running FFU Motors
Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.
Optional Raised Flooring
Raised flooring is ideal for cleanroom classifications below ISO 5 to optimize vertical laminar fow.
Interchangeable Panels for Quick Install
Wall panels are mounted by clean and attractive mirror-finished stainless steel L-brackets that clamp the panel in place, creating a showcase cleanroom and allowing panel change-out in minutes, with no special tools.
Adjustable IsoVents™ Help Balance Differential Pressure
Cleanroom wall panels include adjustable exhaust vents to help balance differential room pressure to achieve the desired ISO requirements.
Multi-Suite Hardwall Modular Cleanroom
Economical modular construction is ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels. Rigid steel frame supports sections up to 30 feet wide without internal support columns or ceiling suspension cables.

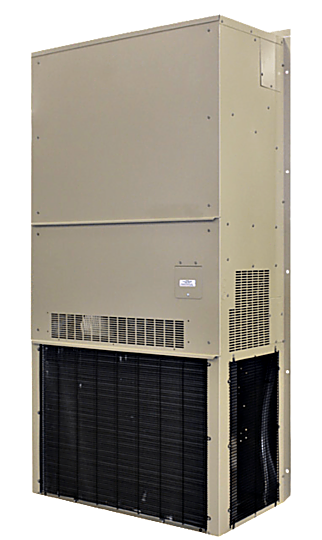

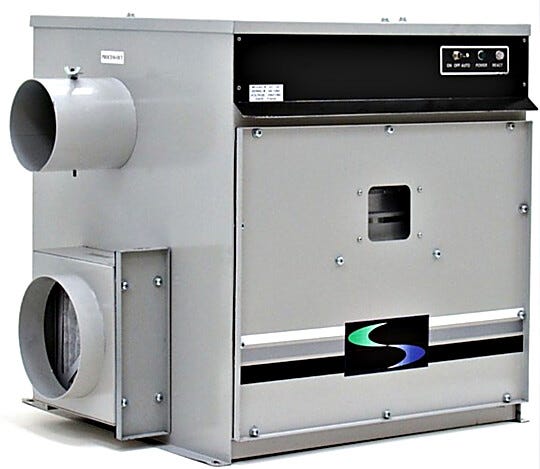

Air Conditioning/RH Control
Modular Hardwall Cleanrooms are available with modular air conditioning modules or can be integrated into existing facility A/C system, as shown here.
Cleanroom LED Light Panel with Emergency Power Supply, 2' x 2'
Cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure.
Cleanroom Power Distribution Diagram
Terra’s Power Distribution Modules (PDM's) drastically simplify connection of FFUs, lights, and control panels. They also allow room for growth. FFUs and lights use quick-connect fittings so they can be added at any time to existing PDMs, without the need for an electrician or hard-wiring.
Clean and Durable Powder Coat Finish
Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.
WhisperFlow Quiet Operation Reduces Distracting Background Noise
Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).
Seismic Safe Cleanroom Design
Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.
Highest Standards For Electronic Components
Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.
High-Throughput Cleanroom Manufacturing
Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.
4,000 Worldwide Cleanrooms
Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology
Complete Order Transparency
Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility
Comprehensive Service Provider
Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
BioSafe® Hygienic Crash Rails
BioSafe® stainless steel crash rails feature continuous-seam welds for a smooth finish that is easy to clean. Eliminates hard-to-clean cracks and crevices where particles and germs can accumulate. -
Lighthouse Handheld Airborne Particle Counters
Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments -
Germicidal UV Lamp Sanitizes Labs, Cleanrooms
UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure. -

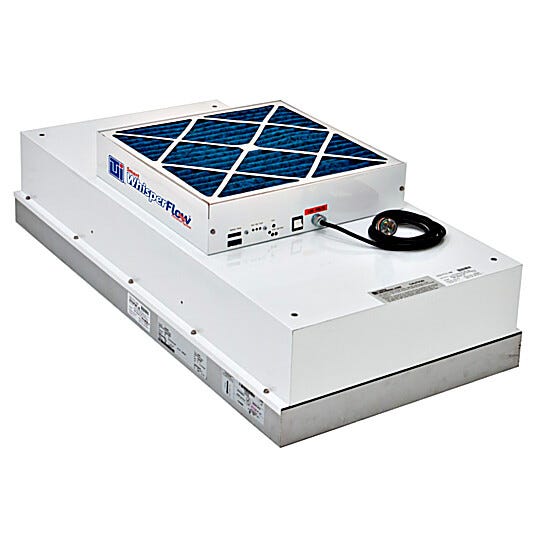

WhisperFlow® Cleanroom Fan Filter Units
Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow. -
Wall-Mounted Benches
Use the cleanroom’s frame uprights to support an adjustable bench, shelf or countertop -

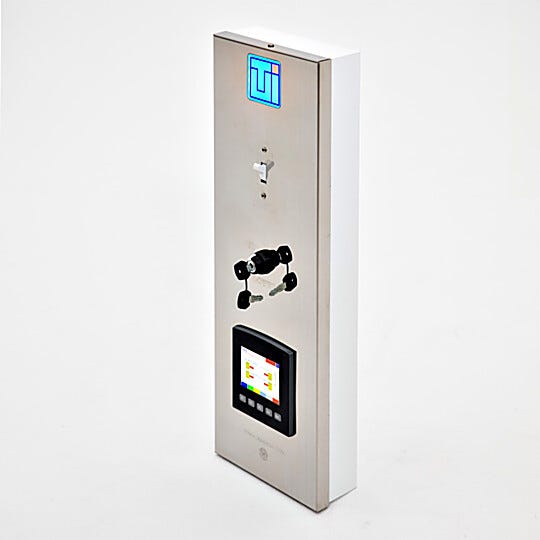

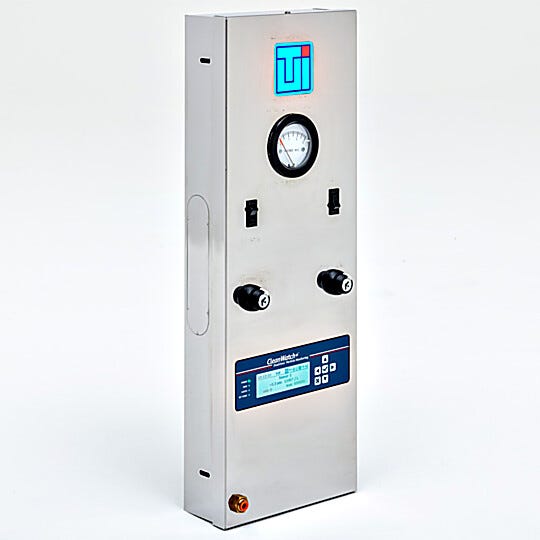

Cleanroom Access and Automated Fan Controls
Standard panel include pressure gauge, on/off and night switches; security system adds access restriction; automated fan system monitors and controls fan speed, pressure, temperature and RH. -
HEPA Fan Filter Unit with Integrated LED Light and Ionizer
FFU with built-in LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Removable filter is accessible from inside the hood/cleanroom for easy replacement and servicing. Includes internal baffling plate and diffuser panel. -

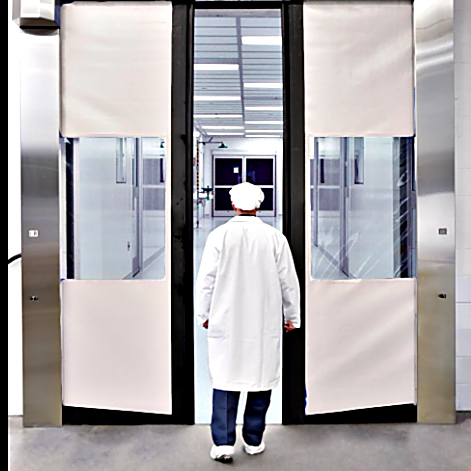

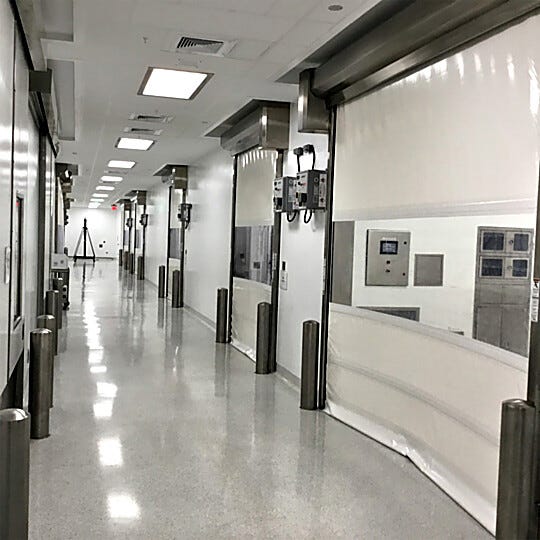

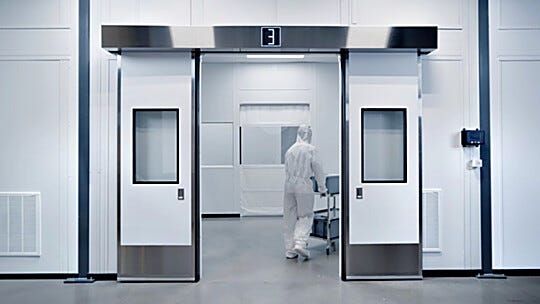

Application-Specific Doors
Select aluminum, stainless steel frame or frameless cleanroom-rated doors with tempered glass, polycarbonate, acylic or dissipative PVC panels (shown: SS frame with polycarbonate panel).
