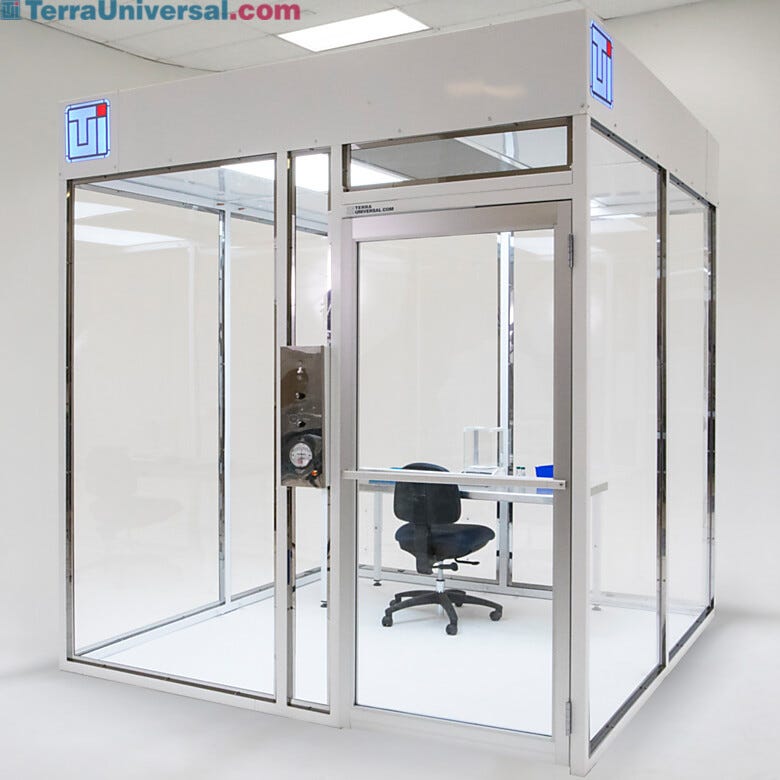

Hardwall cleanroom shown with powder-coated steel frame. | 6600-63A displayed

Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms

Cleanroom; Hardwall, Modular, Static-Dissipative PVC Panels, 304 Stainless Steel Frame

Custom-configured product: Please request quote. Terra will contact you for requirements.

Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8

• Frame Material: 304 Stainless Steel

• Overall Dimensions: Custom

• Panel Material: Static-Dissipative PVC

• Unit of Measure: EA

Terra Part #: 6600-73A-SS

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Print Copy Copied

Hidden Costs of Acrylic Enclosures

Compared to acrylic, static-dissipative PVC offers three benefits that reduce operating expenses and drive down overall ownership cost of a clean room, glove box, hood, desiccator, or other enclosure.

Contamination Control

Acrylic is a prolific static generator. The back-and-forth motion of wiping an acrylic surface creates positive and negative surface charges that attract and hold small particles.

The resulting static cling makes it difficult to remove contaminants from the charged surfaces without the use of ionizing equipment or frequent cleaning with special anti-static solutions. Variations in the surface charges can lead to unpredictable release of aggregated particles, threatening contamination-sensitive material.

For this reason, expect acrylic to drive up the cost of keeping an acrylic enclosure contamination-free.

Don't Turn Your Clean Enclosure into a Particle Magnet! Non-dissipative plastics quickly accumulate surface charges that attract contaminants. If the panel on the left clings to this many test spheres, just imagine how many micro-particles it attracts!

Germ Control

An aseptic environment requires frequent sterilization with disinfectants such as alcohol. Unfortunately, most common biocides, including industry-standard IPA solutions, degrade acrylic, causing cracks and discoloration.

Static-dissipative PVC, on the other hand, resists alcohol and most other sterilizing solutions, supporting standard disinfecting procedures and extending the life of your enclosure.

ESD Control

Acrylic’s most serious hidden cost becomes apparent when static-sensitive materials are destroyed or degraded by unpredictable electro-static discharge (ESD).

Whether it results from hand-wiping the acrylic surface or from the micro-frictional effects of a strong airflow, surface static charge poses serious threat to semiconductor, electronics, and other sensitive materials. In fact, acrylic supports the accumulation and discharge of up to 20,000 volts. This danger is especially acute in a low-humidity environment like a nitrogen-purged glove box or desiccator.

Why Consider Acrylic?

Despite these disadvantages, acrylic is widely used in clean rooms and other critical environment applications. Its low initial cost, light weight, transparency, and strength make it an attractive choice in many situations, and Terra offers most of its enclosures in acrylic in order to provide a competitive option.

In critical applications, however, acrylic should be avoided. Lower total ownership costs – due to easier cleaning, sterilization, and ESD control – quickly justify the initial expense of a static-dissipative PVC enclosure.

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 6600-73A-SS

Request Quote

Accessories related to Terra Part #

Cleanroom; Hardwall, Modular, Static-Dissipative PVC Panels, 304 Stainless Steel Frame

View Shopping Cart View Quote Cart

Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Hardwall Cleanrooms

ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H
Custom Hardwall Modular Cleanroom for Healthcare Applications
USP Compounding Cleanroom for Sterile Pharmaceutical Preparations
Custom Hardwall Modular Cleanroom for Semiconductor Industry
Custom Hardwall Modular Cleanroom for Military Applications
USP Compounding Cleanroom for Pharmaceutical Industry
Hardwall Modular Cleanroom for Pharmaceutical Applications
Extended Height Nutraceutical Cleanroom Suite
Custom Hardwall Modular Cleanroom for Aerospace Applications
Custom Cleanroom: Polypropylene Ceiling Panels and Fan Filter Units
Custom Hardwall Modular Cleanroom for Pharmaceutical Industry
Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding
BioSafe Wash-Down Tempered Glass Cleanroom
Watch Terra's Portable HEPA Filtration System Video
Custom Hardwall Modular Cleanroom for Medical Applications
Hardwall Cleanroom Installation for Pharmaceutical Applications
Extra Tall Class 1,000 Modular Cleanroom for Electronics Assembly
Hardwall Modular Cleanroom – Multi-Room Configuration
Watch Terra's Video on Pharmaceutical Air Lock Designs
ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels
Hardwall Modular Cleanroom Equipment Enclosure
Frame Assembly - Hardwall Modular Cleanroom
Hardwall Modular Cleanroom Equipment Enclosure
Hardwall Modular Cleanroom – Polycarbonate Wall Panels
Insulated ISO-Rated Hardwall Modular Cleanroom
Industry Specific Designs
Hardwall Modular Clean Room Equipment Enclosure
Hardwall Modular Cleanroom
Multi-Suite ISO-Rated Hardwall Modular Cleanroom
Cleanroom Equipment Enclosures
Thermal Vacuum Chamber Enclosure
Modular Hardwall Cleanroom Installation
Class 1,000 Modular Cleanroom for Quartz Rod Processing
Modular Hardwall Cleanroom Installed in Laboratory

ISO 6 (Class 1,000) 32' x 18' x 10'H amber cleanroom for defence manufacturing. The orange amber panels help block UV light and lasers, while permitting visible | 6600-63A displayed ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H ISO 6 (Class 1,000) 32' x 18' x 10'H amber cleanroom for defence manufacturing. The orange amber panels help block UV light and lasers, while permitting visible light for a safe work environment.

cGMP extended height cleanroom, 122' x 50' x 13'H, for dietary supplement manufacturing and packaging Extended Height Nutraceutical Cleanroom Suite cGMP extended height cleanroom, 122' x 50' x 13'H. For dietary supplement and sports nutrition manufacturing. Includes rooms for gowning, mixing, pill making, mixing, packing, and storage.

Extra-tall hardwall cleanroom for injection and extrusion blow molding; 36’L x 32’W x 14’H; Class 100,000, air conditioned | 6600-63A displayed Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding Terra’s rigid free-standing modular cleanroom allows for tall, spacious interiors to fit large equipment for injection and extrusion blow molding. Vertical air returns mounted on back wall recirculate cooled air to increase air conditioning efficiency.

Video overview of BioSafe® glass wash-down cleanroom BioSafe Wash-Down Tempered Glass Cleanroom This video demonstrates benefits of a BioSafe cleanroom and the easy-clean feature of a tempered glass, including suitability for wash-down disinfection.

Terra's in stock portable HEPA filtration systems provide high quality and medical grade air filtration for your ambient environment. Watch Terra's Portable HEPA Filtration System Video The mobile/ self contained filtration system converts to any room to a negative pressure isolation room which then makes it well suited for medical clinics, schools, waiting rooms and other confined areas.

Airlocks safeguard cleanrooms, preventing cross contamination during transfers Watch Terra's Video on Pharmaceutical Air Lock Designs Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.

Hardwall modular cleanrooms, shown with 10'-high economical acrylic wall panels, meet ISO 5 - 8 requirements ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels Hardwall modular cleanrooms come in several application-specific materials, including these 10'-high economical acrylic wall panels mounted on a powder-coated steel frame.

This custom equipment enclosure was designed to provide HEPA-filtered airflow over a large conveyor system; includes multiple access doors Hardwall Modular Cleanroom Equipment Enclosure This custom equipment enclosure was designed to provide HEPA-filtered airflow over a large conveyor system; includes multiple access doors.

Terra’s modular cleanrooms feature free-standing steel support frames that assemble quickly and require no external bracing Frame Assembly - Hardwall Modular Cleanroom Terra’s modular cleanrooms feature free-standing steel support frames that assemble quickly and require no external bracing.

Terra modular cleanrooms accommodate available space and unique equipment interface requirements Hardwall Modular Cleanroom Equipment Enclosure Terra modular cleanrooms accommodate available space and unique equipment interface requirements.

Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom Hardwall Modular Cleanroom – Polycarbonate Wall Panels Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom; multi-suite configuration shown with polycarbonate panels.

Insulated ISO-Rated Hardwall Cleanroom with polypropylene panels | 6601-19 displayed Insulated ISO-Rated Hardwall Modular Cleanroom Insulated Hardwall Cleanroom with polypropylene panels reduces energy costs and increases temperature stability.

Modular clean rooms meet requirements of pharmaceutical manufacturing, drug compounding, material testing and semiconductor processing | 6600-68A displayed Industry Specific Designs Modular clean rooms meet requirements of pharmaceutical manufacturing, drug compounding, material testing, semiconductor processing and other industries.

Versatile panel designs allow utility feed-throughs and equipment interface modules to accommodate particle-sensitive instruments and processes | 6600-68A displayed Hardwall Modular Clean Room Equipment Enclosure Versatile panel designs allow utility feed-throughs and equipment interface modules to accommodate particle-sensitive instruments and processes.

Terra’s modular cleanrooms accommodate tight space restrictions | 6600-64A displayed Hardwall Modular Cleanroom Terra’s modular cleanrooms are configured for tight spaces and accommodate posts, overhead obstructions and other floor plan restrictions.

Economical ISO-compliant, modular construction is ideal for multiple cleanroom suites | 6600-73A displayed Multi-Suite ISO-Rated Hardwall Modular Cleanroom Economical modular designs accommodate complex floorplans, ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels.

Sound and vibration testing room in a Terra Cleanroom installed in the University of Toronto Microsatellite and Technology Center Cleanroom Equipment Enclosures Modular controls allows integration of diverse equipment. Shown: sound and vibration testing room in a Terra Cleanroom, with modifications for specilized utilities and test equipment.

Static-dissipative PVC clean room modified to accommodate a thermal vacuum chamber Thermal Vacuum Chamber Enclosure Static-dissipative PVC hardwall clean room modified to accommodate utility drops and clearance requirements of a thermal vacuum chamber used to test micro-satellites.

Modular Hardwall Cleanroom installed with split-A/C units Modular Hardwall Cleanroom Installation Modular hardwall cleanroom with split air conditioning system: heat-generating compressor roof mounted, with cool air ducted to the cleanroom

Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment Class 1,000 Modular Cleanroom for Quartz Rod Processing Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment. The custom feed-through allows quartz rods to be fed into the cleanroom. FFU’s in the ceiling are aligned with the feed-through opening to further protect the rods from particle contamination.

Hardwall modular cleanroom installed inside a laboratory, featuring automatic sliding door | 6600-73A displayed Modular Hardwall Cleanroom Installed in Laboratory A hardwall modular cleanroom with automatic sliding door, installed in a laboratory

Features and Benefits

Accredited Technical Cleanroom Expertise

We are committed to provide our clients with a full service solution, from project planning through engineering, product design, manufacturing, procurement, shipping, installation, validation, commissioning, and preventative maintenance. Our team of qualified professionals collaborates with all stakeholders to deliver innovative solutions at every stage of the project.

In Stock Pre-Fabricated Cleanroom Components

Since each pre-fabricated cleanroom component is tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Optional Raised Flooring

Raised flooring is ideal for cleanroom classifications below ISO 5 to optimize vertical laminar fow.

Interchangeable Panels for Quick Install

Wall panels are mounted by clean and attractive mirror-finished stainless steel L-brackets that clamp the panel in place, creating a showcase cleanroom and allowing panel change-out in minutes, with no special tools.

Adjustable IsoVents™ Help Balance Differential Pressure

Cleanroom wall panels include adjustable exhaust vents to help balance differential room pressure to achieve the desired ISO requirements.

Multi-Suite Hardwall Modular Cleanroom

Economical modular construction is ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels. Rigid steel frame supports sections up to 30 feet wide without internal support columns or ceiling suspension cables.

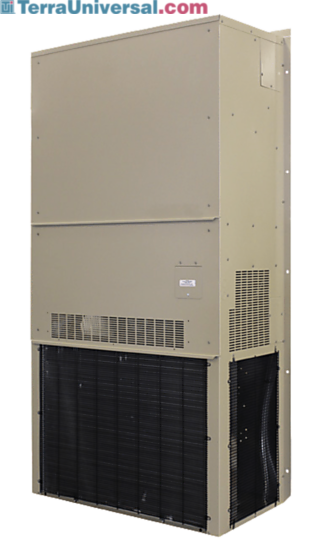

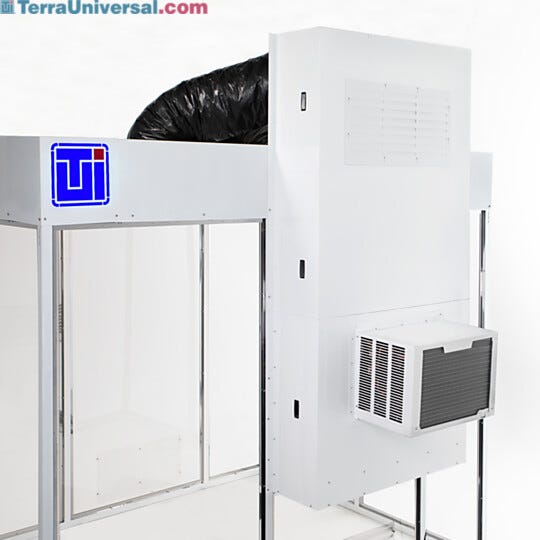

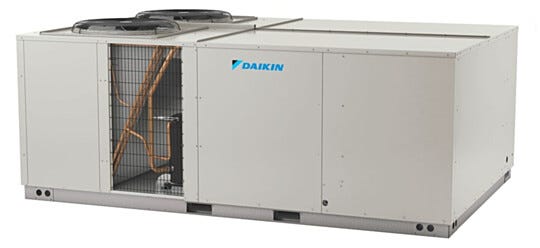

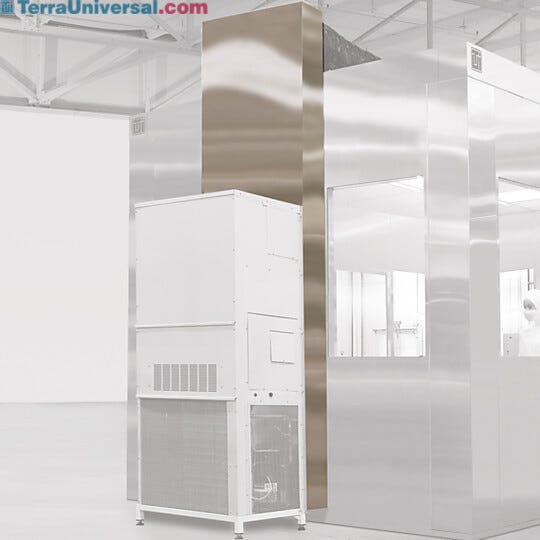

Air Conditioning/RH Control

Modular Hardwall Cleanrooms are available with modular air conditioning modules or can be integrated into existing facility A/C system, as shown here.

Cleanroom LED Light Panel with Emergency Power Supply, 2' x 2'

Cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure.

Cleanroom Power Distribution Diagram

Terra’s Power Distribution Modules (PDM's) drastically simplify connection of FFUs, lights, and control panels. They also allow room for growth. FFUs and lights use quick-connect fittings so they can be added at any time to existing PDMs, without the need for an electrician or hard-wiring.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Seismic Safe Cleanroom Design

Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

High-Throughput Cleanroom Manufacturing

Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.

4,000 Worldwide Cleanrooms

Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Hardwall Modular Cleanroom

Cleanrooms cut costs without compromising performance; available in ISO 7 and ISO 8 compliant designs

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

BioSafe® Hygienic Crash Rails

BioSafe® stainless steel crash rails feature continuous-seam welds for a smooth finish that is easy to clean. Eliminates hard-to-clean cracks and crevices where particles and germs can accumulate.
Learn More
Lighthouse Handheld Airborne Particle Counters

Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
Learn More
Germicidal UV Lamp Sanitizes Labs, Cleanrooms

UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
Learn More
WhisperFlow® Cleanroom Fan Filter Units

Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow.
Wall-Mounted Benches

Use the cleanroom’s frame uprights to support an adjustable bench, shelf or countertop
Learn More

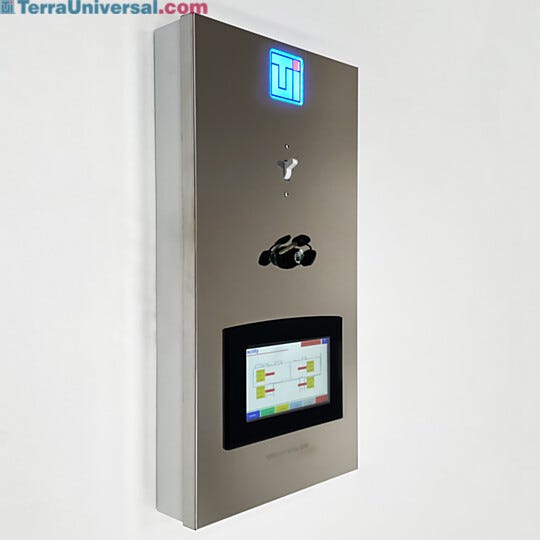

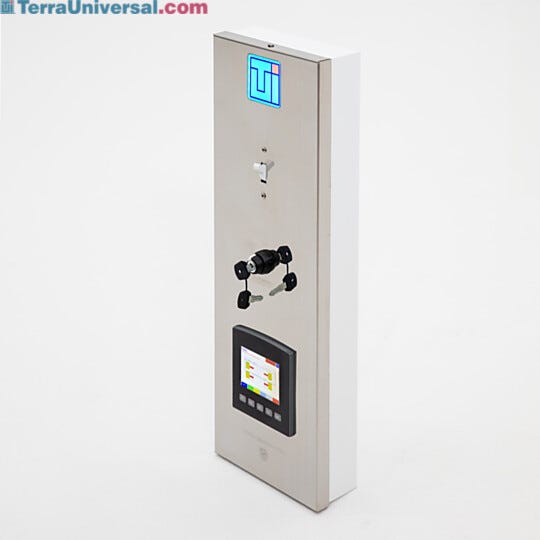

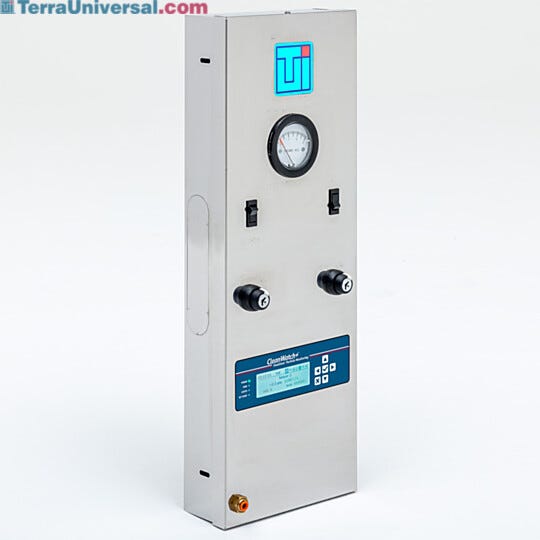

Cleanroom Access and Automated Fan Controls

Standard panel include pressure gauge, on/off and night switches; security system adds access restriction; automated fan system monitors and controls fan speed, pressure, temperature and RH.
Learn More
HEPA Fan Filter Unit with Integrated LED Light and Ionizer

FFU with built-in, flush-mount LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Eliminates hard-to-clean, exposed light fixture and ion bar. Includes internal baffling plate and diffuser panel.

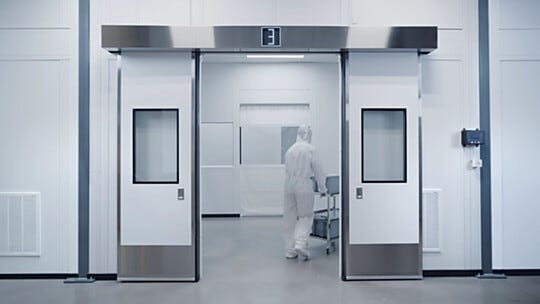

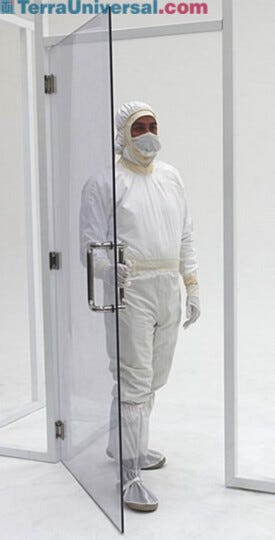

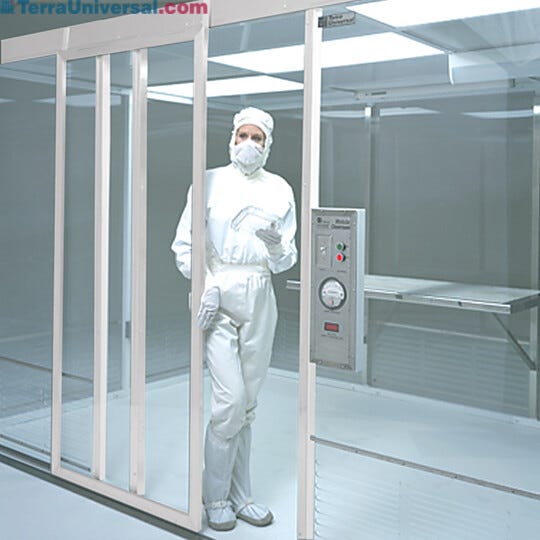

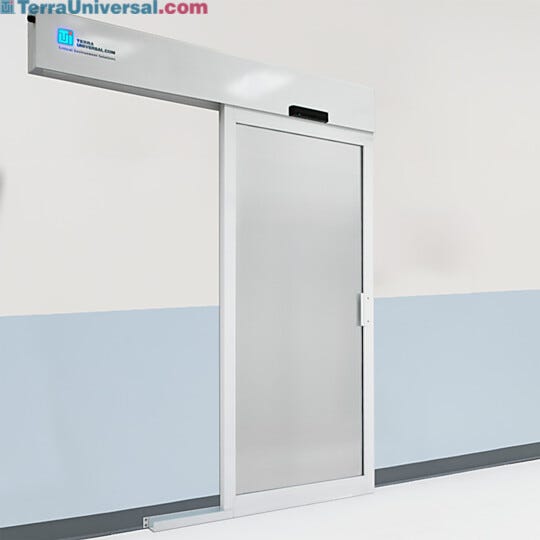

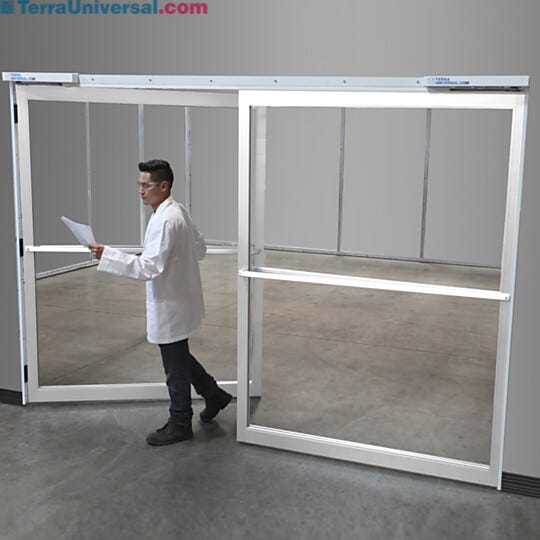

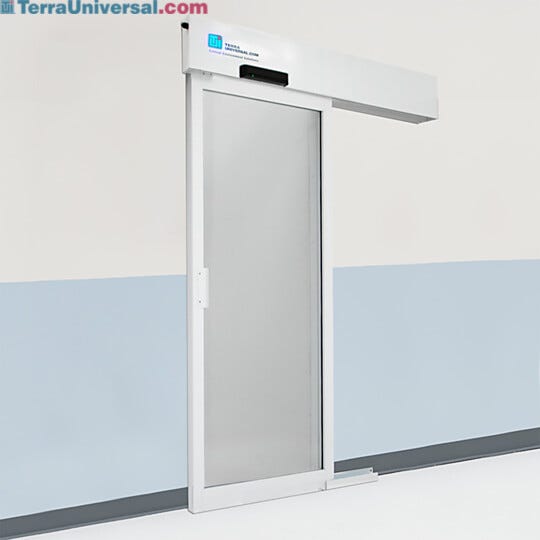

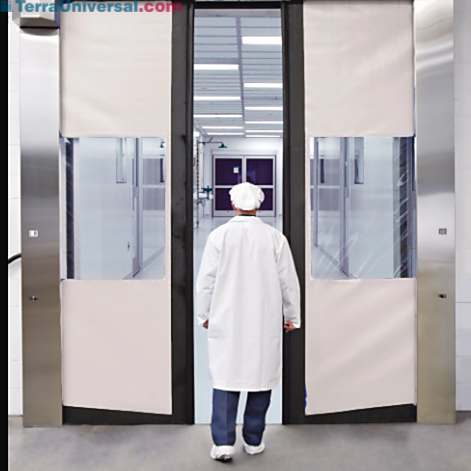

Application-Specific Doors

Select aluminum, stainless steel frame or frameless cleanroom-rated doors with tempered glass, polycarbonate, acylic or dissipative PVC panels (shown: SS frame with polycarbonate panel).
