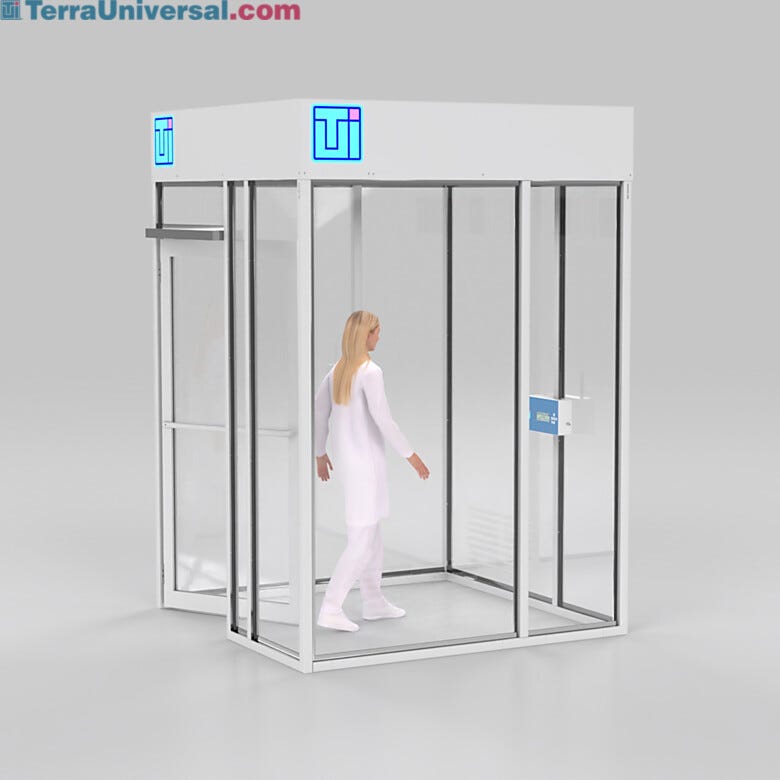

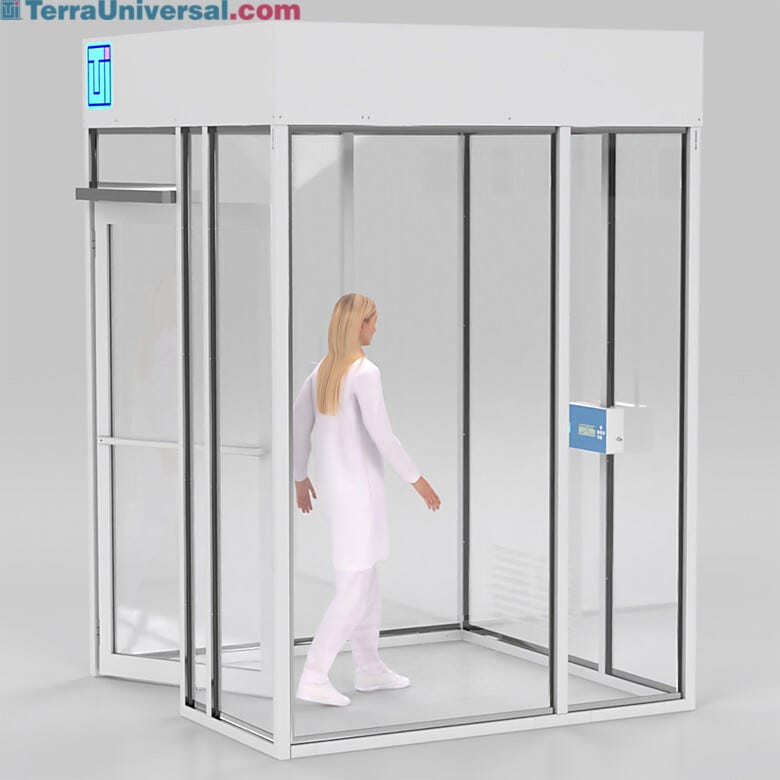

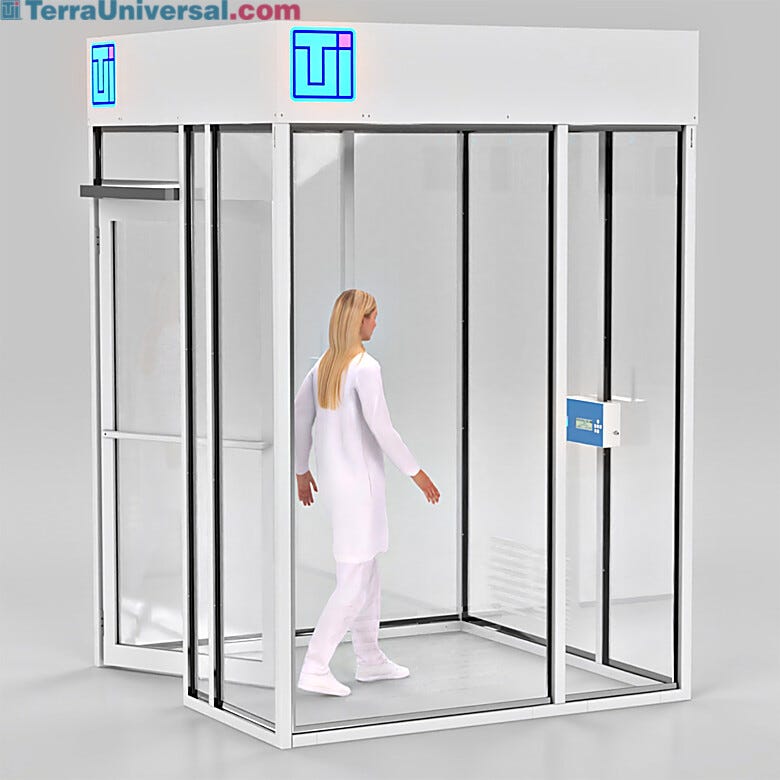

ValuLine® hardwall modular cleanrooms make contamination control accessible and affordable, adapting to virtually any facility layout | 6600-21A-VL-0606 displayed

Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms,Hardwall Cleanrooms

ValuLine® Cleanroom; Hardwall, Clear Acrylic Panels, 6'W x 6'D x 8'H

Terra Part #: 6600-21A-VL-0606

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Available Certified ISO Grade Designs: ISO 8
ValuLine™ modular cleanrooms are prepackaged and mass-produced for the lowest possible price
Standard configurations are ready to ship and install — no lengthy lead times or complex prep
Converts existing office spaces and warehouses into a compliant ISO-grade cleanroom quickly and affordably
A crew of three can assemble a modular hardwall cleanroom in under 4 hours!
Available from 36 ft² – 800 ft² with customizable ISO levels, heights, and optional accessories

• Frame Material: Powder-Coated Steel

• Height: 8'

• Depth: 6'

• Width: 6'

• Panel Material: Clear Acrylic

• Unit of Measure: EA

Terra Part #: 6600-21A-VL-0606

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Print Copy Copied

Hidden Costs of Acrylic Enclosures

Compared to acrylic, static-dissipative PVC offers three benefits that reduce operating expenses and drive down overall ownership cost of a clean room, glove box, hood, desiccator, or other enclosure.

Contamination Control

Acrylic is a prolific static generator. The back-and-forth motion of wiping an acrylic surface creates positive and negative surface charges that attract and hold small particles.

The resulting static cling makes it difficult to remove contaminants from the charged surfaces without the use of ionizing equipment or frequent cleaning with special anti-static solutions. Variations in the surface charges can lead to unpredictable release of aggregated particles, threatening contamination-sensitive material.

For this reason, expect acrylic to drive up the cost of keeping an acrylic enclosure contamination-free.

Don't Turn Your Clean Enclosure into a Particle Magnet! Non-dissipative plastics quickly accumulate surface charges that attract contaminants. If the panel on the left clings to this many test spheres, just imagine how many micro-particles it attracts!

Germ Control

An aseptic environment requires frequent sterilization with disinfectants such as alcohol. Unfortunately, most common biocides, including industry-standard IPA solutions, degrade acrylic, causing cracks and discoloration.

Static-dissipative PVC, on the other hand, resists alcohol and most other sterilizing solutions, supporting standard disinfecting procedures and extending the life of your enclosure.

ESD Control

Acrylic’s most serious hidden cost becomes apparent when static-sensitive materials are destroyed or degraded by unpredictable electro-static discharge (ESD).

Whether it results from hand-wiping the acrylic surface or from the micro-frictional effects of a strong airflow, surface static charge poses serious threat to semiconductor, electronics, and other sensitive materials. In fact, acrylic supports the accumulation and discharge of up to 20,000 volts. This danger is especially acute in a low-humidity environment like a nitrogen-purged glove box or desiccator.

Why Consider Acrylic?

Despite these disadvantages, acrylic is widely used in clean rooms and other critical environment applications. Its low initial cost, light weight, transparency, and strength make it an attractive choice in many situations, and Terra offers most of its enclosures in acrylic in order to provide a competitive option.

In critical applications, however, acrylic should be avoided. Lower total ownership costs – due to easier cleaning, sterilization, and ESD control – quickly justify the initial expense of a static-dissipative PVC enclosure.

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Products Products
Details Details
Photos & Videos Gallery
Features & Benefits Features
Manuals & Resources Resources
Related Related

Terra Part # 6600-21A-VL-0606

$5,941

Accessories related to Terra Part #

ValuLine® Cleanroom; Hardwall, Clear Acrylic Panels, 6'W x 6'D x 8'H

View Shopping Cart View Quote Cart

Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Hardwall Cleanrooms

Watch Terra's Portable HEPA Filtration System Video

Terra's in stock portable HEPA filtration systems provide high quality and medical grade air filtration for your ambient environment. Watch Terra's Portable HEPA Filtration System Video The mobile/ self contained filtration system converts to any room to a negative pressure isolation room which then makes it well suited for medical clinics, schools, waiting rooms and other confined areas.

Features and Benefits

Learn More: Valuline® vs. Standard Cleanrooms

Print Copy Copied

How are Terra Universal’s ValuLine and standard cleanrooms different? Is the standard line cleaner?

Ordering Information

Both cleanroom lines meet the same quality standards for design and materials while also providing essentially the same airflow, which is based on the configuration of fan/filter units.

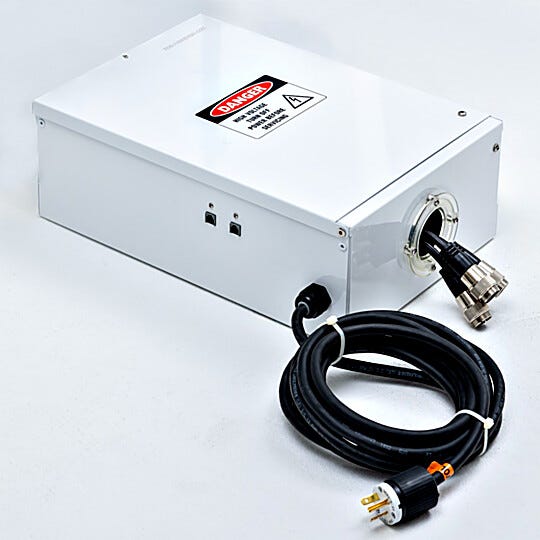

However, Terra’s standard cleanrooms utilize Power Distribution Modules, which can accommodate more FFUs and light fixtures than the basic power supply included on ValuLine cleanrooms. PDMs also feature quick-connect fittings and a better control panel. ValuLine cleanrooms do not include the decorative top trim and status indicator lights included on standard line cleanrooms.

Each standard line cleanroom is built-to-order, can be made in virtually any reasonable size and can use alternative materials such as stainless steel frames. ValuLine cleanrooms are preconfigured from standard components to produce ten standard sizes from 6’ x 6’ up to 12’ x 12’ in each of two heights (7’ and 8’), allowing shorter lead times.

Fan / Filter Units with HEPA Filter

Model	Nominal Dimensions* Inches (mm)	Avg. CFM @ MS (m3/h)	High speed Airflow FT/min(m/s)	Medium speed Airflow FT/min(m/s)	Low speed Airflow FT/min(m/s)	High speed Run Amps (watts) @ 60Hz	Medium speed Run Amps (watts) @ 60Hz	Low speed Run Amps (watts) @ 60Hz
2 x 4	23.63 x 47.63 x 13 (600 x 1210 x 332)	717 (1218)	115 (.58)	102 (.51)	93 (.47)	4.3A (512W)	3.5A (416W)	3.3A (393W)
2 x 3	23.63 x 35.63 x 13 (600 x 905 x 332)	602 (1023)	121 (.61)	116 (.59)	106 (.54)	4.1A (500W)	3.1A (378W)	2.7A (329W)
2 x 2	23.63 x 23.63 x 13 (600 x 600 x 332)	558 (948)	172 (.87)	166 (.84)	162 (.82)	3.9A (472W)	2.8A (339W)	2.4A (290W)

Accredited Technical Cleanroom Expertise

We are committed to provide our clients with a full service solution, from project planning through engineering, product design, manufacturing, procurement, shipping, installation, validation, commissioning, and preventative maintenance. Our team of qualified professionals collaborates with all stakeholders to deliver innovative solutions at every stage of the project.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Don't Budge on Your Budget, Save on High-Quality ValuLine® Products

Compromising on quality goods with costs can be tiring. Here at Terra, the compromise is over with our wide range of ValuLine® products. From cleanrooms to glove boxes, ValuLine® products come with a premium quality without sacrificing an affordable price.
