Terra Part # 2641-12
$22,899
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Only 4 left in stock
Accessories related to Terra Part # 2641-12
58753

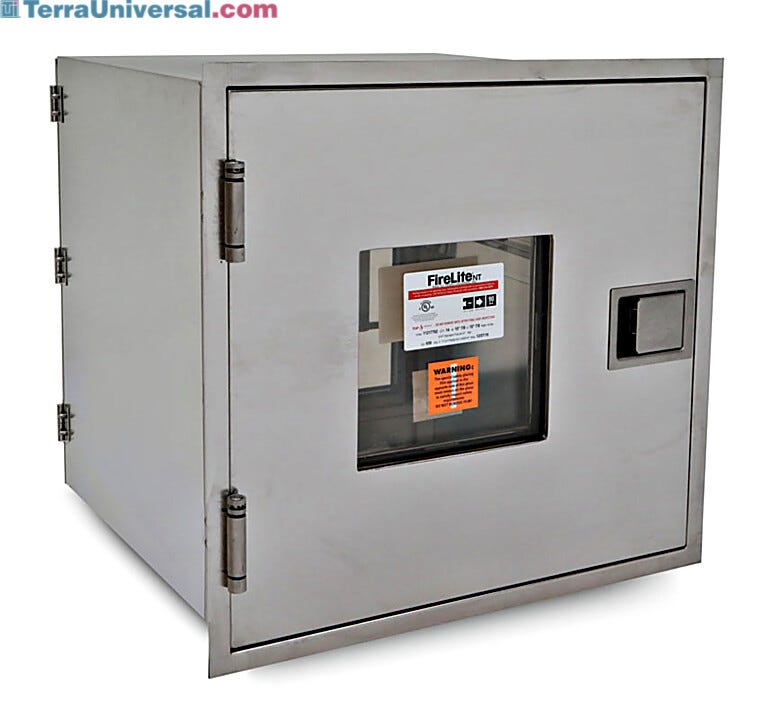

Pass-Through; CleanSeam™ Fire-Rated, Viewing Window, 24" W x 24" D x 24" H ID, Flush Wall Mount, 304 Stainless Steel
  • Fire-rated access panel ("clean" side) carries the UL-10B label for 90-minute fire exposure (suitable for 2-hour wall rating) at a max temperature rise of 450°F (232°C) in 30 minutes
  • Continuous-seam CleanSeam welds minimize hard-to-clean cracks
  • Heavy-duty, double-wall door construction prevents chamber misalignment and door damage when operators apply excessive force to an interlocked door
  • Fire-rated 10” x 10” (254 x 254mm) viewing window allows convenient monitoring of pass-through contents
  • Recessed pull-to-open latch withstands up to 50 lbs. of force without damaging the catch, interlock, or door frame
  • Rugged mechanical interlock prevents cross-contamination by allowing only one door at a time to open
  • Spring-action, self-closing door simplify operation, minimize the chance of contamination
  • "Dirty" side door is a non-fire-rated door, with static-dissipative PVC window, stainless steel frame, and LiftLatch

Inside Depth: 24"

Inside Height: 24"

Inside Width: 24"

Concealed Interlock: No

Continuous-Seam Welds: Yes

Electropolished: Optional

HEPA/ULPA Filtration: No

Material: 304 Stainless Steel

Model: CleanSeam™ Fire-Rated

Mounting Position: Flush Wall

Special Door Configuration: Fire-Rated

Viewing Window: Yes

Unit of Measure: EA

Dimensions, Product: 26" W x 28" D x 26" H

Dimensions, Shipping: 32" W x 34" D x 42" H

Marks & Listings: UL, ULC, UL 10B Fire Rated

Package Type: Crate

Weight, Product: 50 lb

Weight, Shipping: 83 lb

Buy Accessories
  1. Removes solvents and other hazardous vapors from materials while they are in the pass-through | 6705-23 displayed
    $569
    Increase Down Increase Up
  2. To prevent doors from opening completely, use a 90 degree door stop for flush mount pass through doors | 6705-98 displayed
    $405
    Increase Down Increase Up
  3. To prevent doors from opening completely, use a 90 degree door stop for flush mount pass through doors | 6705-98 displayed
    $405
    Increase Down Increase Up
  4. Stainless steel support brackets are recommended for pass-throughs deeper than 24" | 1993-60C displayed
    $506
    Increase Down Increase Up
  5. Stainless steel support brackets are recommended for pass-throughs deeper than 24" | 1993-60C displayed
    $619
    Increase Down Increase Up
  6. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  7. Electropolish Service
    Request Quote
    Increase Down Increase Up
  8. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability | 9999-316L displayed
    Request Quote
    Increase Down Increase Up
  9. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  10. Equipment Testing
    Request Quote
    Increase Down Increase Up
  11. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  12. UL Listing Declaration for Fire-Rated Pass-Throughs
    Request Quote
    Increase Down Increase Up

Fire-Rated Pass-Through Chambers

  • Cleanroom Pass-Through Chamber Video Overview Cleanroom Pass-Through Features and Selection Guide
  • Fire-Rated Pass-Through Chamber
  • CleanSeam+ Pass-Through
  • this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination Hands-Free, Automatic Pass-Through Door
  • Floor Mounted Recirculating Smart Passthrough Floor-Mounted Smart Pass-Through with Recirculating HEPA Filtration
  • Recirculating HEPA Filtration Pass-Through Chamber Recirculating HEPA Filtration Pass-Through
  • Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31 Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
  • Woman opening extra-large smart pass-through with ULPA filtration Extra-Large Smart Pass-Through with Recirculating ULPA Filtration
Cleanroom Pass-Through Chamber Video Overview
this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination

Features and Benefits

Critical Dimensions

Fire-Rated Pass-Through Chambers Without Windows

Chambers Tailored to Your Requirements

Modifications are no problem, as long as you keep these points in mind to retain the UL-B fire-rating:

  • Door thickness cannot be modified
  • Window dimensions cannot be modified
  • Pass-through chamber width and height dimensions other than what is shown in the ordering chart are possible, but are restricted to the outside dimensional (OD) range between 24"W x 18"H and 36"W x 48"H

Discuss your specific needs with a Terra Product Specialist.

Fire-Rated Pass-Through Installation

Fire-rated doors are designed to be mounted flush with the wall, with the body of the pass-through extending into the unclassified room (see illustration).

Access Clearances
  • Width = (Nominal Chamber Width) – 1.88"
  • Depth = (Nominal Chamber Depth) – 0.12"
  • Height = (Nominal Chamber Height) – 1.25"
  • Wall Cut-Out = Add 0.5" to chamber width and add 0.5" to chamber height
Pass-Through Support Brackets

Terra offers support brackets and hardware to ensure secure mounting (order separately). In most cases, a bracket kit provides ample support. Select support brackets for 36"D (914 mm) wall-mount models to brace the larger chamber. Two brackets are recommended for wide chambers (installed side-by-side on the wall).

Continuous-Seam Welds Eliminate Particle Traps!

CleanSeam™ Pass-Throughs feature fully welded, seamless interiors, to eliminate hard-to-clean cracks and crevices that can harbor contaminants. The continuous-seam welds are ground smooth to simplify cleaning and sterilization.

Pass-Through Chamber Interlock

Terra’s automatic mechanical interlock prevents cross-contamination by allowing one door to be open at a time. Encased in stainless steel, the mechanism is rated for millions of operations, more than enough to last the lifetime of the pass-through.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Stainless Steel Reinforced Doors and Handles

Doors on professional-grade pass-through chambers are reinforced with stainless steel frames, which lend rigidity, improve the seal, and extend the service life of the doors.

One Piece Elastomer Gasket

The white, “e”-shaped gasket provides a flexible seal that will not creep or deform over time. The gasket is made of a non-outgassing, thermoplastic elastomer that is resistant to harsh chemicals and extreme temperatures.

Fire-Rated Pass-Through Glass Window

The wire-free glass-ceramic incorporate a surface-applied, fire-rated film and is impact rated for additional safety. These windows feature a high level of clarity and offer protection from either side.

Spring-Loaded Fire-Rated Passthrough Hinge

Spring-loaded hinges provide the self-closing capability required in a fire-rated wall. Automatic closing doors also simplify operation for operators with hands full.

Insulated Fire-Rated Pass-Through Door

Terra’s fire-rated door meets UL 10B requirements for 90-minute fire exposure, including hose-stream testing. The inside of the door is lined with 2”-thick SuperWool® Plus insulation to reduce heat transfer from elevated room temperatures.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Passthrough Chamber Door Stop
    This stainless steel door stop limits the arc of the pass-through door's swing to 90°, preventing damage to wall, door latch and other components. Door stops can be adjusted to allow other angles.
  • Support Brackets for Pass-Through Chambers
    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
  • Electropolish Finish
    Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish.
