- Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8

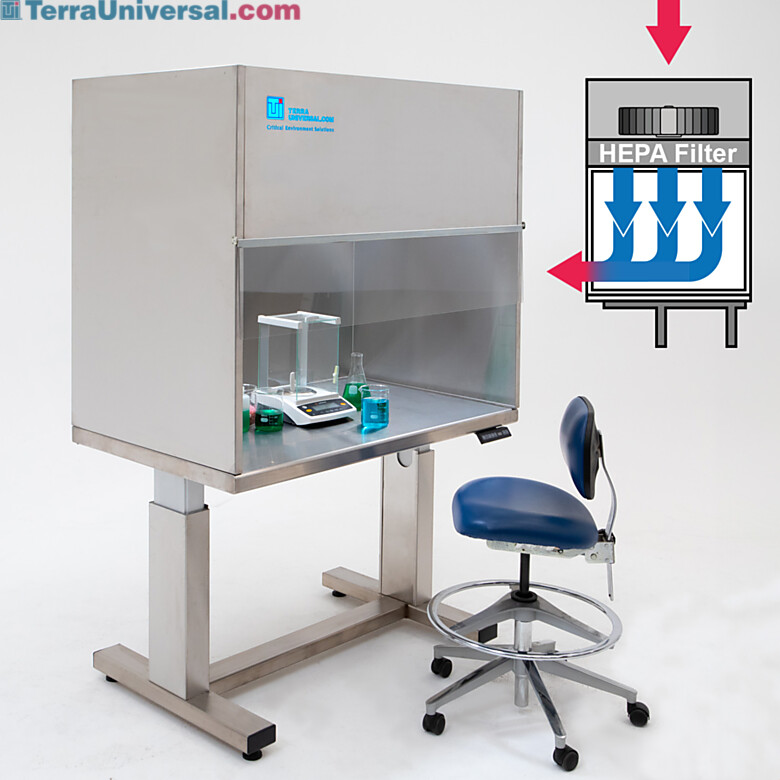

- HEPA-filtered hood maintains Class 100/ISO 5 particle counts as measured 6" underneath filter face
- Bio-tech HEPA enclosure suitable for optics, microelectronics, genomics, proteomics, cell biology
- Sterile friendly stainless steel benchtop flow hood is free of cracks and crevices
- Turnkey system includes frame, adjustable speed blower, HEPA filter, LED lighting, status indicator
- The variable-speed, electrically-commutated filter/fan(s) provide average air speeds of 90 FPM (0.45 m/s) at an industry-best noise level of 50 dBA
Universal Benchtop Vertical Laminar Flow Hoods,Universal Benchtop Vertical Laminar Flow Hoods
1675-PP-03
1675-PP-03 80282
Universal Vertical Laminar Flow Hoods
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote requestLearn More: Terra's Quick Build Program
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra Quick Build Program
Terra's QuickBuild Program includes dozens of products with stocked components ready for quick assembly and shipment in 5 days.
Examples of QuickBuild-eligible products include:
- ValuLine Softwall Enclosures
- BioSafe® "Universal" Flow Hoods
- HEPA-Filtered Garment Cabinets
- Softwall CleanBooth™ Horizontal Laminar Flow Stations
Quick Build services are available for Terra products assembled with in-stock, on-hand components. Therefore, Terra can provide these items assembled and ready for shipment within 4 - 6 business days.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details

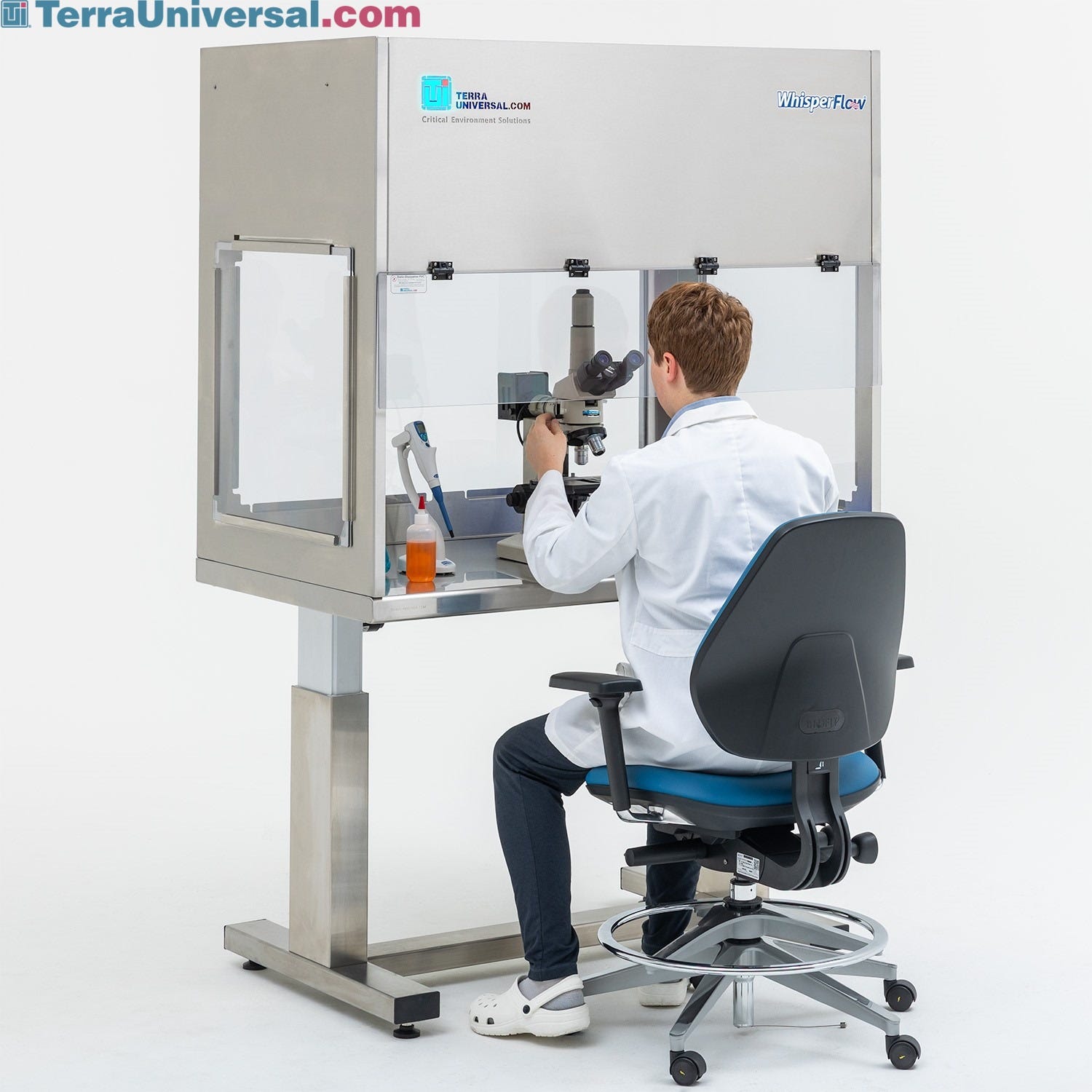

Universal Benchtop Vertical Laminar Flow Hoods
Watch Terra's BioSafe® Universal Benchtop Hoods Video- Watch Terra's ErgoHeight® Workstations Video
- Watch Terra's Vibration Isolation Stand Video
- Vibration Isolation Stand
- Terra Universal WhisperFlow Laminar Flow Hoods
- Laminar Flow Hood Smoke Test
- Benchtop ISO 5 Vertical Laminar Flow Hood with Automatic Height Adjusting Table
BioSafe Universal Benchtop Flow Hoods have seven achievable flow hood configurations built into its modular design Watch Terra's BioSafe® Universal Benchtop Hoods Video ISO 5 rated BioSafe Universal Benchtop flow hood, removes particulate airborne contamination to ensure clean work surfaces. Built in fan/filter unit filters 99.99% of particles through HEPA filter
EroHeight® workstations are ideal for boosting productivity and comfort. Watch Terra's ErgoHeight® Workstations Video EroHeight® work stations provide automatic adjustable height for user comfort. Robust moterized lifters provide industry leading speed and durability.
Video demonstration of Terra's ISO 5 adjustable vibration isolation stands Watch Terra's Vibration Isolation Stand Video Our vibration isolation stands are designed to accommodate a wide range of our flow hoods. These adjustable stands provide optimal stability and support.
Width and height adjustable stand supports the user on vibration sensitive applications by isolating their equipment from the work surface | 1688-99-30 displayed Vibration Isolation Stand Width and height adjustable stand supports the user on vibration sensitive applications by isolating their equipment from the work surface
Overview video of Terra Universal's comprehensive portfolio of benchtop WhisperFlow laminar flow hoods Terra Universal WhisperFlow Laminar Flow Hoods Overview video of Terra Universal's comprehensive portfolio of benchtop WhisperFlow laminar flow hoods
This smoke study provides a visualization of the unidirectional airflow and positive pressure inside Terra’s vertical laminar flow hood. Laminar Flow Hood Smoke Test This smoke study provides a visualization of the unidirectional airflow and positive pressure inside Terra’s vertical laminar flow hood.
Terra’s laminar flow hoods provide a HEPA filtered ISO 5, Class 100, mini cleanroom environment. They are ideal for many science applications, including microelectronics, optics, medical devices, sterile pharmaceutical compounding, and mushroom cultivation.
To learn more, visit our website and browse our selection of laminar flow hoods, or call us to speak with one of our product specialists.
Terra’s laminar flow hoods provide a HEPA filtered ISO 5, Class 100, mini cleanroom environment. They are ideal for many science applications, including microelectronics, optics, medical devices, sterile pharmaceutical compounding, and mushroom cultivation.
To learn more, visit our website and browse our selection of laminar flow hoods, or call us to speak with one of our product specialists.
Benchtop Vertical laminar flow hood in 304 stainless steel, static-dissipative PVC side panels, installed to automatic height adjusting table (28”-43”H) | 1688-92B-36-SD displayed Benchtop ISO 5 Vertical Laminar Flow Hood with Automatic Height Adjusting Table Vertical laminar flow hoods provide a HEPA-filtered work area for protection from particle contaminants. Benchtop laminar flow hoods can easily mount to an automatic height adjusting table (28”-43”H). Perfect for workstations with heavy or fragile equipment.
Features & Benefits
Features and Benefits
Learn More: Flow Hood Materials
Print Copy Copied
How to Order:
Optional panel kits are available for models with interchangeable side panels. Application specific materials help support required conditions inside your laminar flow hood.
- [-SS] 304 Stainless Steel (with transparent SD-PVC sash)
- Solid stainless steel walls simplify cleaning by minimizing cracks and crevices where particles or germs can accumulate.
- Superior durability resists corrosion from a wide range of chemicals/solvents
- Preferred material wherever frequent cleaning and sterilization are required
- Not compatible with interchangeable panel kits
- [-SD] Static-Dissipative PVC (SD-PVC)
- Transparent with blue-gray tint
- Safely conducts surface charges to ground, protects against particle aggregation
- Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
- [-PC] Polycarbonate
- Transparent with slight gray tint
- Cracks less easily with approx. 250x impact resistance of glass and 15x impact resistance of acrylic
- Increased thermal resistance (115–130 °C (239–266 °F)) helps withstand repeated steam sterilization
- Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
- [-BA] Black Acrylic (with transparent SD-PVC sash)
- Opaque black panels block ambient light for photo-sensitive applications or improved privacy
- Economical, and provides high tensile strength
- Damaged by frequent contact with alcohol and other common cleaning agents
- [-TG] Tempered Glass
- Combines visual clarity with broad chemical resistance
- [-AA] Amber Acrylic
- Orange tint filters out UV and blue light to protect light sensitive materials from degrading, or changing composition
- Economical and provides high tensile strength
- Damaged by frequent contact with alcohol and other common cleaning agents
- [-WA] White Acrylic (with transparent SD-PVC sash)
- Translucent, diffuses ambient light and provides some privacy
- Economical and provides high tensile strength
- Damaged by frequent contact with alcohol and other common cleaning agents
- [-FP] FM4910 Polypropylene (with transparent SD-PVC sash)
- Opaque white panels block light for light-sensitive applications or improved privacy
- FM 4910 compliant, flame retardant
- Excellent chemical resistance
- [-FV] FM4910 CPVC
- Transparent with slight blue tint
- FM 4910 compliant, flame retardant
- Controls static electricity, prevents charge generation on the surface thereby controlling particle attraction
- Excellent chemical resistance, surface hardness, and mar resistance
Standard Panel Configurations:
Additional high performance panel kits available:
Critical Environment Solutions
Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.
BioSafe® WhisperFlow Hoods: One-Piece Design With Seamless Tracks
BioSafe® Whisper Flow Hoods feature a one-piece design free of cracks or crevices that harbor microbes and contaminants. Surface are easy to wipe down, resistant to alcohol-based cleaners and harsh biocides.
Recessed LED Lighting Illuminates Work Area
Laminar flow hoods include long-lasting LED lighting to illuminate the work area. The LED strip is flush-mounted for easy disinfection.

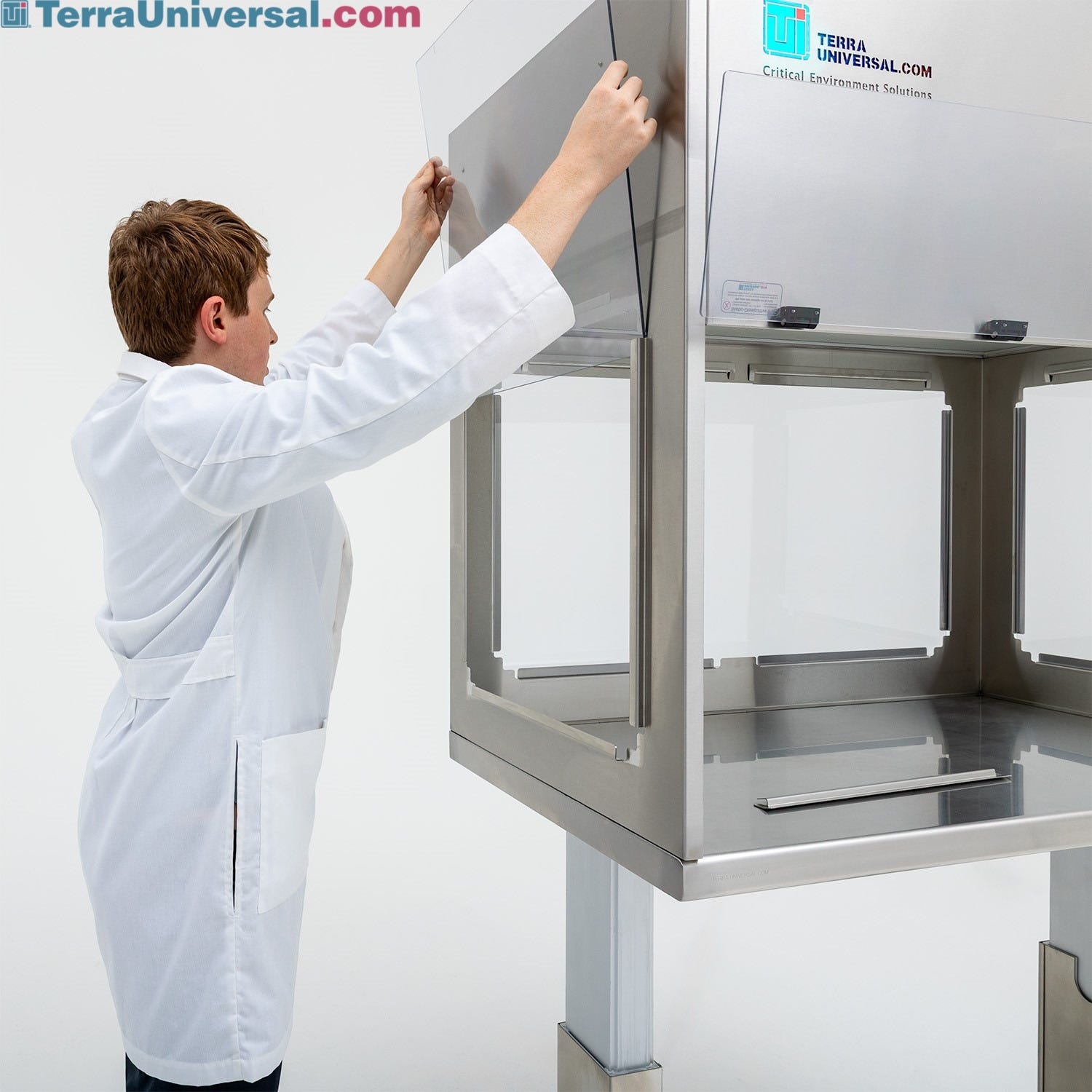

Versatile Removable Panels
Removable side-panels increase the versatility of your hood by improving visibility plus simplifying equipment access. The side-panels are lined with foam gasket and slide into the hood’s frame for a simple yet effective seal. Each panel is easily removed to simplify cleaning and disinfection.

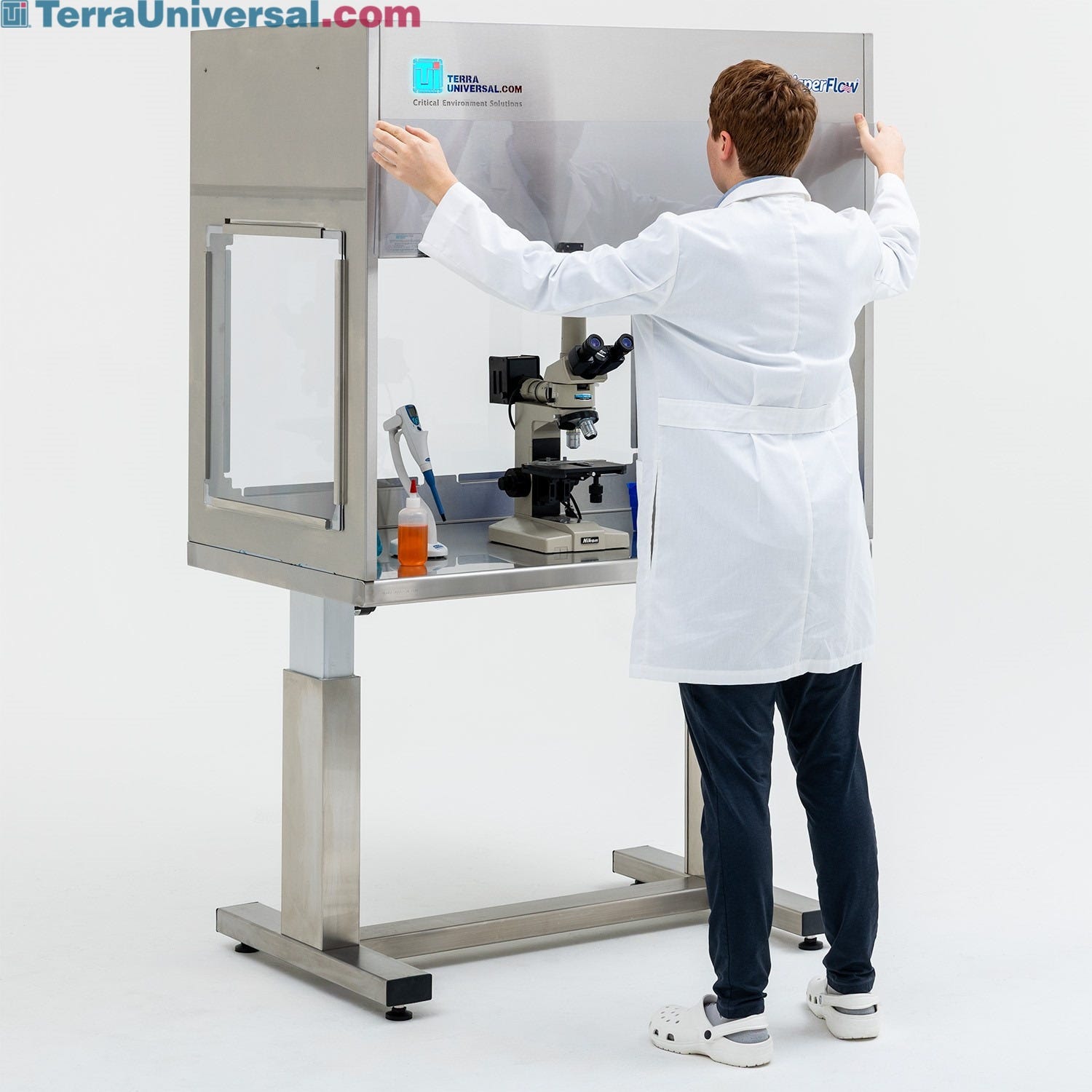

Tilt-Up Sash
Tilt-up sash enhances laminar airflow and prevents air from blowing directly at the operator’s face. Static-dissipative PVC material resists chemicals and eliminates particle attraction from static charges.
Integrated Status Indicator Light
Operation status indicator (OSI) light glows continuously when hood is plugged in and turned on to confirm filtration unit is operational. The OSI blinks when the unit is plugged in but switched off.
BioSafe®: Terra's Ultimate Cleanliness Rating
Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
HEPA Fan Filter Unit with Integrated LED Light and Ionizer
FFU with built-in, flush-mount LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Eliminates hard-to-clean, exposed light fixture and ion bar. Includes internal baffling plate and diffuser panel.
WhisperFlow Quiet Operation Reduces Distracting Background Noise
Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).
Complete Project Transparency
Terra is dedicated to complete transparency on project status, shipment tracking, and installation scheduling
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Terra's QuickBuild Program
Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Vibration Isolation Stand
Width and height adjustable stand supports the user on vibration sensitive applications by isolating their equipment from the work surfaceHEPA Fan Filter Unit with Integrated LED Light and Ionizer
FFU with built-in, flush-mount LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Eliminates hard-to-clean, exposed light fixture and ion bar. Includes internal baffling plate and diffuser panel.Vibration-Isolated Table
Works surface and stand pair provide vibration-isolated solution for Biosafe Universal HoodsLighthouse Handheld Airborne Particle Counters
Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environmentsIonizing Bar with Installation Kit
Ionizer emits equal quantities of positive and negative ions to neutralize static charges within the work area, system requires no calibration or adjustments.-
UV Germicidal Lamp
The V-Ray germicidal UV lamp is installed within a Terra hood to inhibit microbial growth on the work surface -
Removable Rear Plenum for Exhaust or Recirculation
An optional adjustable rear plenum mounts on the back wall of a benchtop laminar flow hood to exhaust or recirculate air (flexible ducting not included). Rear exhaust helps minimize turbulence and optimize laminar airflow in the work area. -
Benchtop ISO 5 Vertical Laminar Flow Hood with Automatic Height Adjusting Table
Vertical laminar flow hoods provide a HEPA-filtered work area for protection from particle contaminants. Benchtop laminar flow hoods can easily mount to an automatic height adjusting table (28”-43”H). Perfect for workstations with heavy or fragile equipment. Multifunctional Stainless Steel Base Cabinet
Base cabinets are also suitable for supporting Terra Universal benchtop laminar flow or fume hoods. Use self-tapping screws to fasten the hood's frame to the cabinet's tabletop.Replacement Filters
Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers caused by excessive backpressure from long overdue filter replacements.Fan Filter Unit with External UPS Battery
Uninterruptible Power Supply (UPS) system provides backup battery power to keep critical equipment running without interruption when utility power is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
