Terra Part # 6600-68A
Request Quote
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Designed in the USA

• Refer to sales order and/or drawings for dimensions and other details

• Polypropylene panels are center mounted to 2" powder-coated square steel uprights

• Mirror-finish stainless steel L-bracket trim strips provide an attractive, easy-clean exterior

• Includes powder-coated steel ceiling grid that forms 2' x 4' bays for filter/fans, lights or blank panels (order ceiling modules separately)

• Mirror-finish SS control panel includes all specified blower, light and other utility switches

• Request UL Listing Declaration (order separately) for cleanroom electrical system, which helps meet municipal and other permitting requirements that may apply

• Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes. Check your local planning department to see what regulations apply to your installation.

• Specified height is from the floor to filter face. FFUs add 13" overhead clearance to this measurement. To assure proper air flow and installation, allow an additional 11" between the top of the FFUs and the ceiling or other overhead obstruction (total of 24" between the cleanroom filter face and the surrounding facility ceiling).

• Other options include access doors, air conditioning, air locks and antechambers, air flow and pressure gauges, and furnishings

• Control Panel provides on/off switches for FFUs, lights and other system options, and includes Status Indicators (order separately, P/N 6600-23)

• Seismic analysis available; specify Part Number 6600-98. Changes required after approval, if any, are to be covered by change orders.

Overall Dimensions: Custom

Frame Material: Powder-Coated Steel

Dimensions, Shipping: 153" W x 65" D x 41" H

Weight, Shipping: 2,203 lb

Unit of Measure: EA

Hardwall Cleanrooms

  • Video of Hardwall Modular Cleanroom Design, Manufacture and Installation On-Site Hardwall Cleanroom Installation
Video of Hardwall Modular Cleanroom Design, Manufacture and Installation

Features and Benefits

Affordable Customization

Affordable customization to unique requirements!

  • Terra's modular designs allow versatile configurations using standard components, whether you need a small equipment enclosure or a multi-suite processing facility
  • Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
  • Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
  • Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
  • Stand-alone A/C modules or integration with existing air handling system
  • Consultation services available to meet industry-specific regulations, such as USP 797/800 compounding requirements
  • Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges

Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!

Free-Standing All-Steel Design

Steel frame members and ceiling joists allow spans of up to 30 feet without internal support columns or ceiling suspension cables

Interchangeable Panels

Wall panels are mounted by clean and attractive mirror-finished stainless steel L-brackets that clamp the panel in place, creating a showcase cleanroom and allowing panel change-out in minutes, with no special tools.

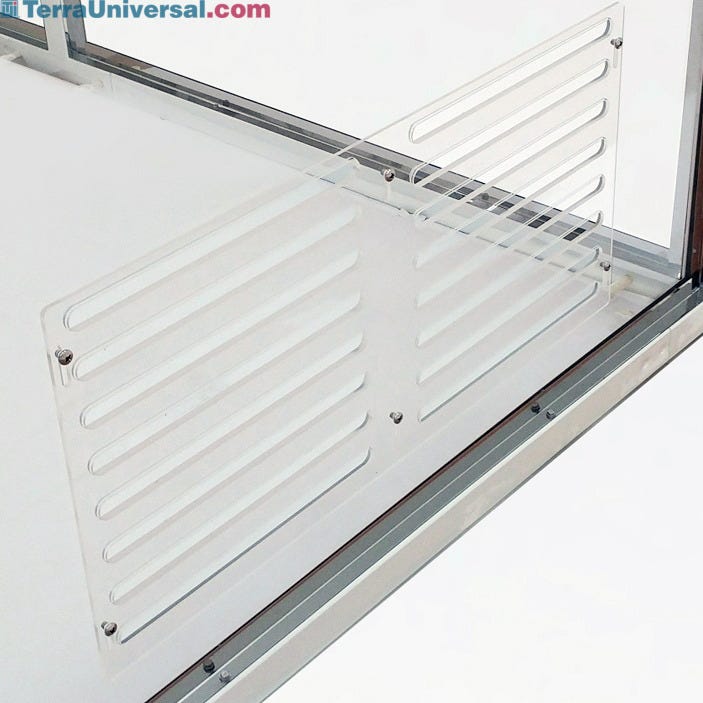

Adjustable IsoVents™

Each cleanroom includes adjustable exhaust vents that adjust to meet ISO requirements for differential room pressures

Multi-Suite Hardwall Modular Cleanroom

Economical modular construction is ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels.

Air Conditioning/RH Control

Modular Hardwall Cleanrooms are available with modular air conditioning modules or can be integrated into existing facility A/C system, as shown here.

Application-Specific Doors

Select aluminum, stainless steel frame or frameless cleanroom-rated doors with tempered glass, polycarbonate, acylic or dissipative PVC panels (shown: SS frame with polycarbonate panel).

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • WhisperFlow® Cleanroom Fan Filter Units
    Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow.
  • Wall-Mounted Benches
    Use the cleanroom’s frame uprights to support an adjustable bench, shelf or countertop
  • Cleanroom Access and Automated Fan Controls
    Standard panel include pressure gauge, on/off and night switches; security system adds access restriction; automated fan system monitors and controls fan speed, pressure, temperature and RH.
  • Germicidal UV Lamp Sanitizes Labs, Cleanrooms
    UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
